5.5 Wireless

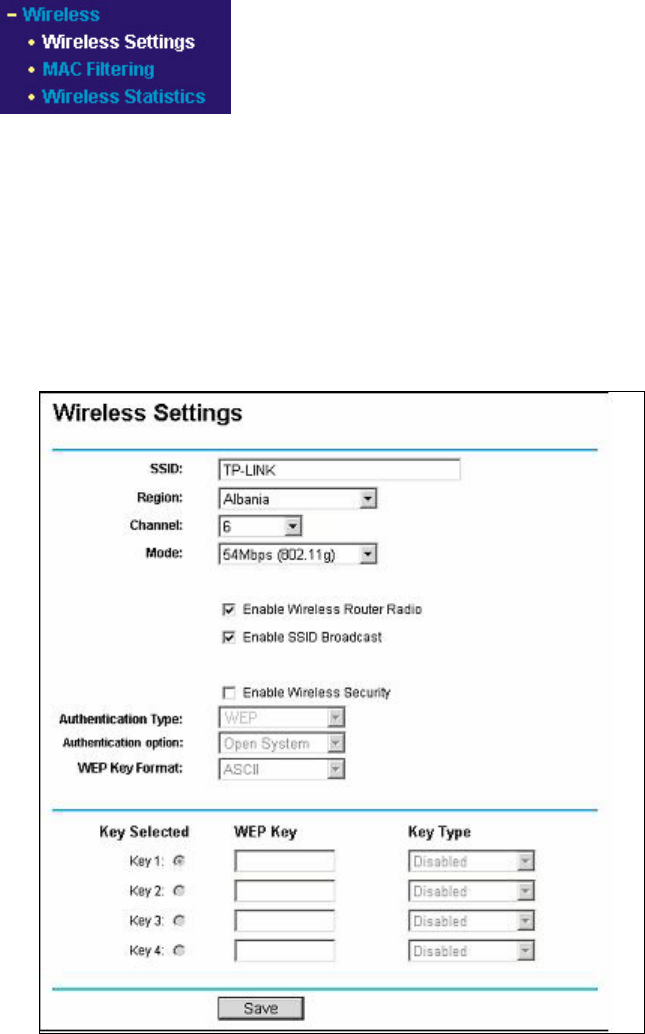

Figure 5-9: Wireless menu
There are three submenus under the Wireless menu (shown in figure 5-9): Wireless
Settings, MAC Filtering and Wireless Statistics. Click any of them, and you will be
able to configure the corresponding function. The detailed explanations for each
submenu are provided below.
5.5.1 Wireless Settings
The basic settings for the wireless network are set on this page, figure 5-10:
Figure 5-10: Wireless Settings
¾ SSID - Enter a value of up to 32 characters. The same name (SSID) must be
assigned to all wireless devices in your network. The default SSID is default, but it
is recommended strongly that you change your networks name (SSID) to a
different value. This value is case-sensitive. For example, DEFAULT is NOT the
same as default.
¾ Region - Select your region from the pull-down list. This field specifies the region
where the wireless function of the router can be used. It may be illegal to use the
- 19 -
