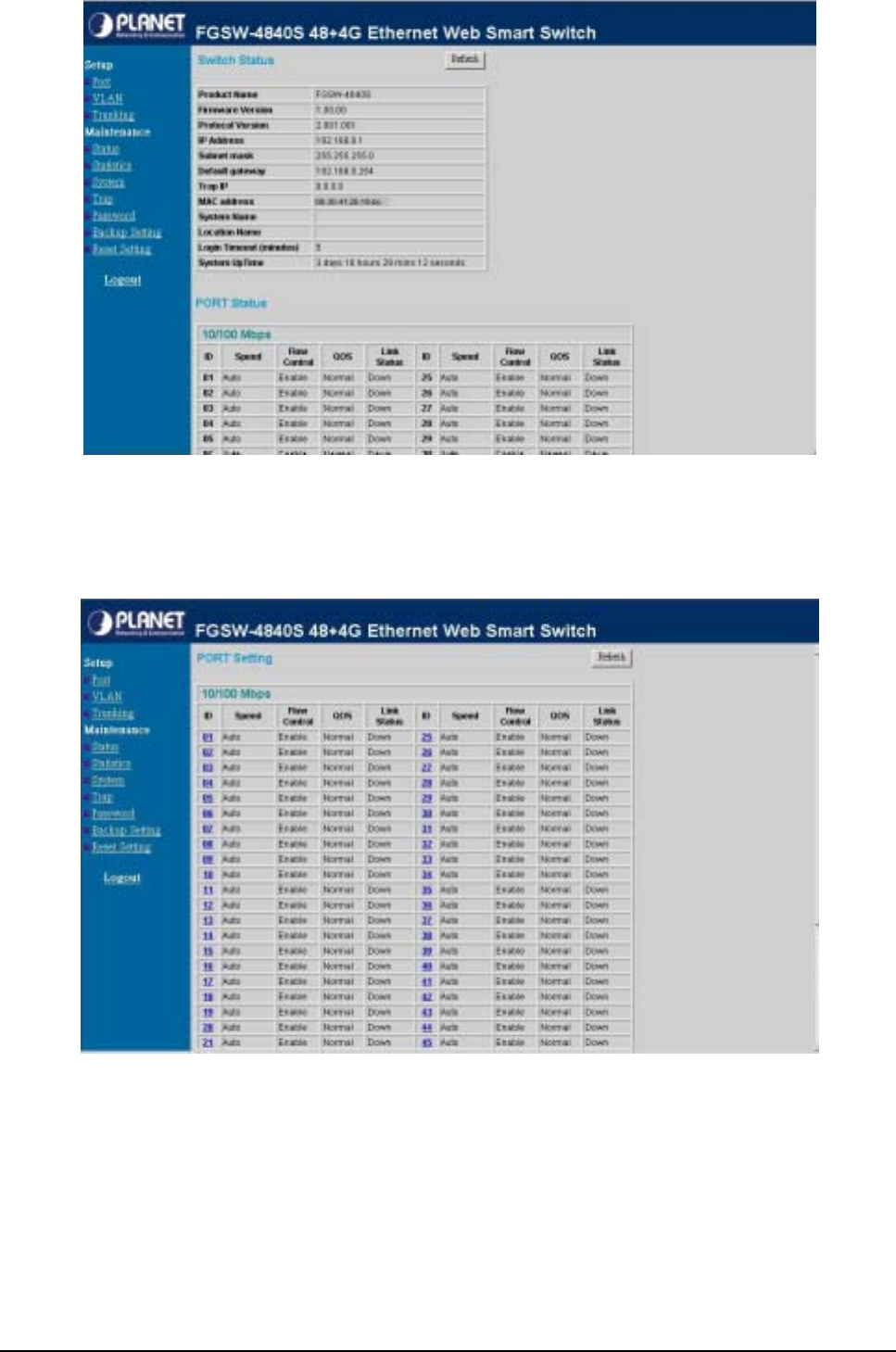

Figure 3-25 Web Main screen
3.1.2.3 Port
This function allows displaying each port’s status. The Link Status in the screen displays the current connection speed and
duplex mode; else this function will show “Down” when the port is disconnected. Press the “Refresh” button to renew the
screen. The screen in Figure 3-26 appears.
Figure 3-26 Port Setting screen
Press the port ID to configure each port’s speed duplex mode and disable, flow control, QoS settings. The screen in Figure
3-27 appears.
