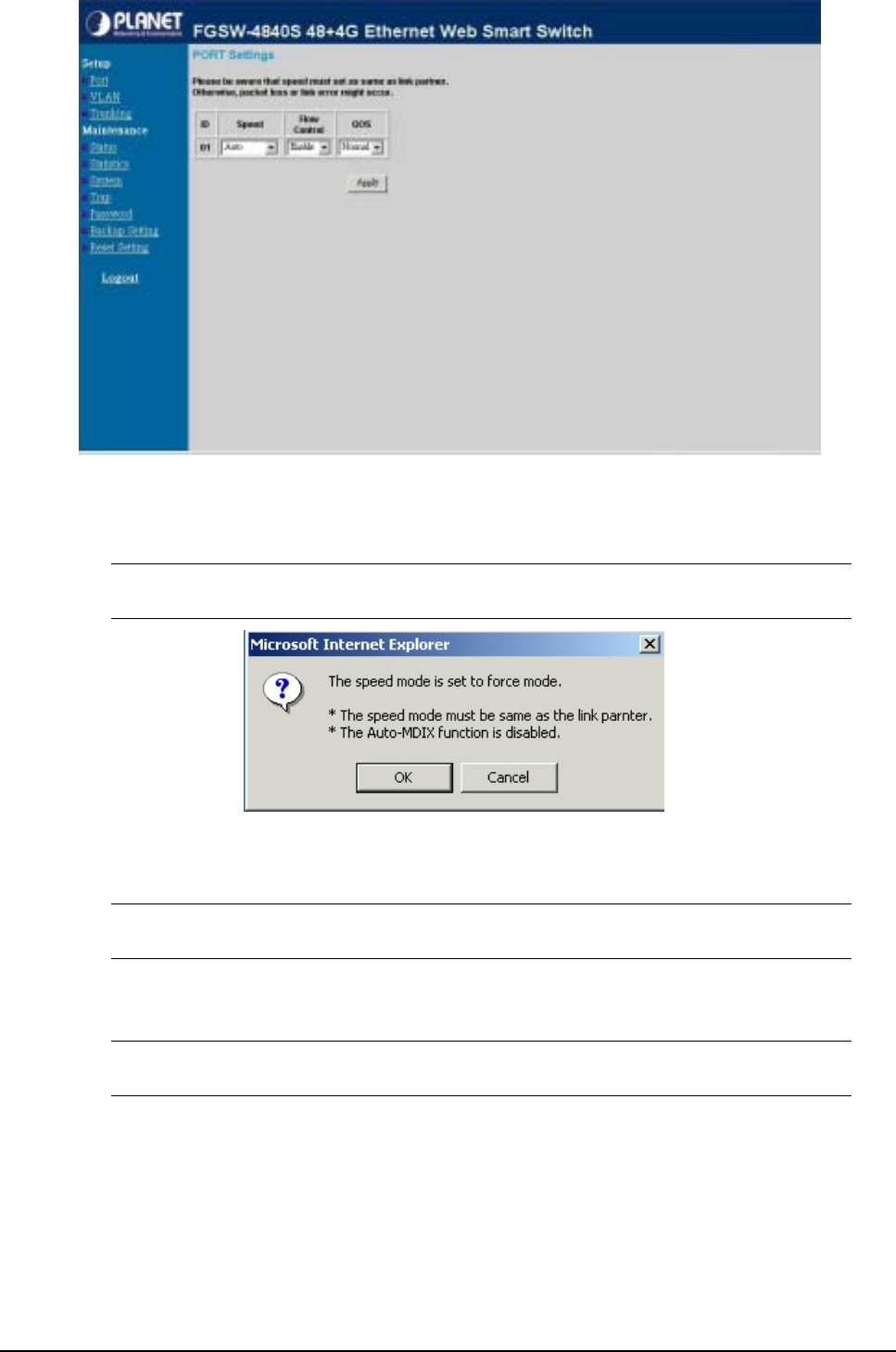

Figure 3-27 Per Port Setting screen
The options and descriptions of Port Settings shown as below:
Speed: this function provides six modes—100M Full, 100M Half, 10M Full, 10M Half, Auto and Disable.
Note:
When set each port to run at 100M Full, 100M Half, 10M Full, and 10M Half-speed modes. The
Auto-MDIX function will disable.
Flow Control: this setting determines whether or not the Switch will be handling flow control. Set Flow Control to enable for
avoiding data transfer overflow. Or it sets to disable; there is either no flow control or other hardware/software management.
When the port is set to forced mode, then the flow control will automatically set to disable.
Note:
Due to the hardware restriction. The flow control function cannot across between port 1-24
and port 25-52.
QoS: In some ports that need to have a high priority to deal with the data transfer, QoS should be change. The default
setting of all port QoS is Normal, set the QoS to High where the ports have a high priority of transfer data.
Note:
Due to the hardware restriction. The QoS control function cannot across between port 1-24
and port 25-52.
3.1.2.4 VLAN
This function group individual ports into a small “Virtual” network of their own to be independent of the other ports. The
screen in Figure 3-28 appears.
