Samsung 1100DF Computer Monitor User Manual



On-Screen Display

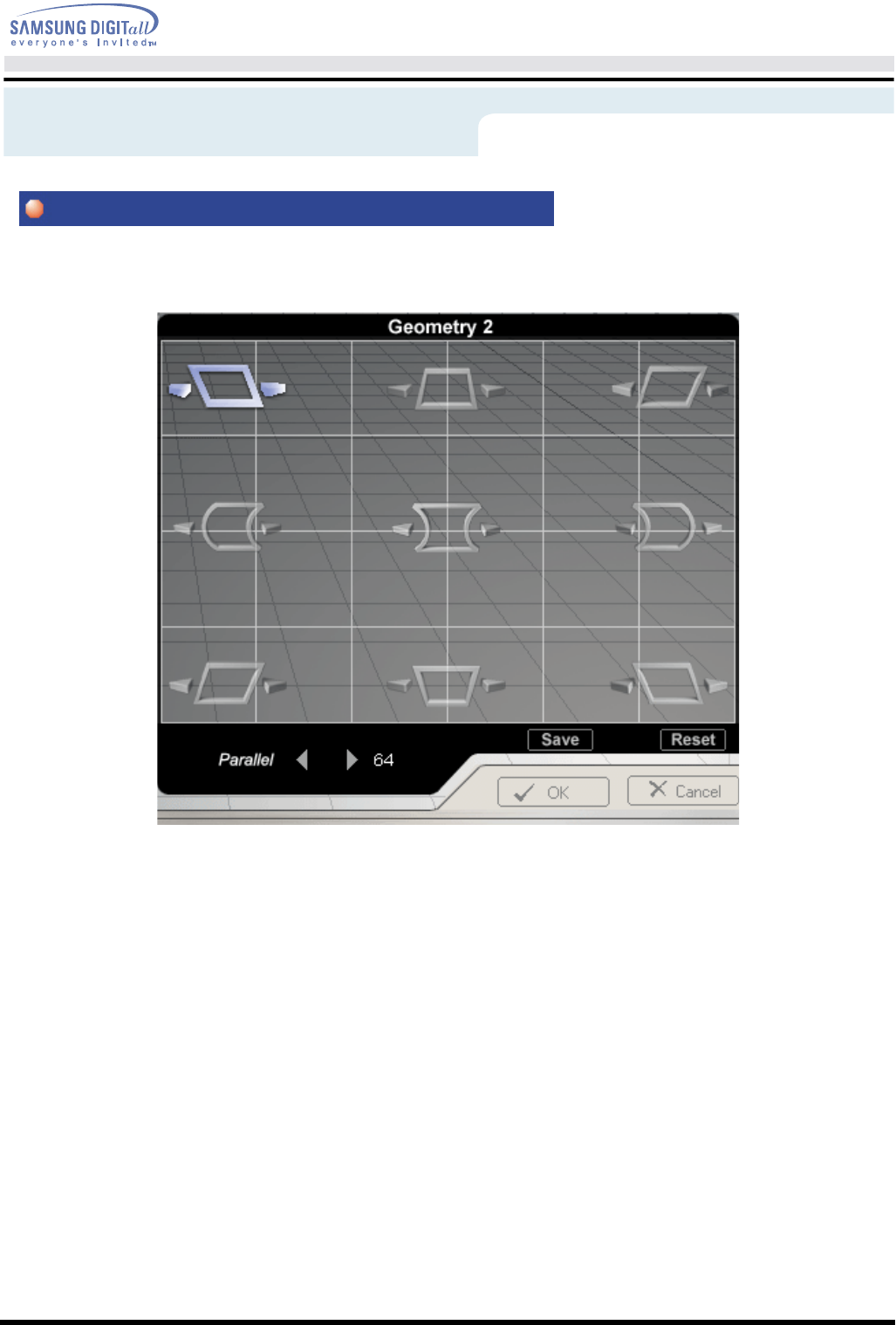

Parallel
This adjusts the parallelogram level of the screen.
1. Selection and Adjustment : Place and click the mouse pointer on the Parallelogram icon and then drag
as desired. The Parallelogram icon is located in the screen corners. If the mouse is dragged to the left, the
image area tilts to the right. If the mouse is dragged to the right, the image area tilts to the left.
2. Fine Tuning : When the mouse pointer is correctly placed over the Parallelogram icon, the icon color
changes. Then, click the left mouse button to pop up the Parallelogram fine tuning sub-menu in the left bottom
corner of the screen. When the mouse cursor is correctly placed over either of the left or right arrows, the
arrow color changes, as it does when the icon is selected. Then, click the left mouse button to achieve the
desired Parallelogram fine tuning.
3. Holding the mouse button down will cause the value to change rapidly.
Geometry 2
