11 (GB)

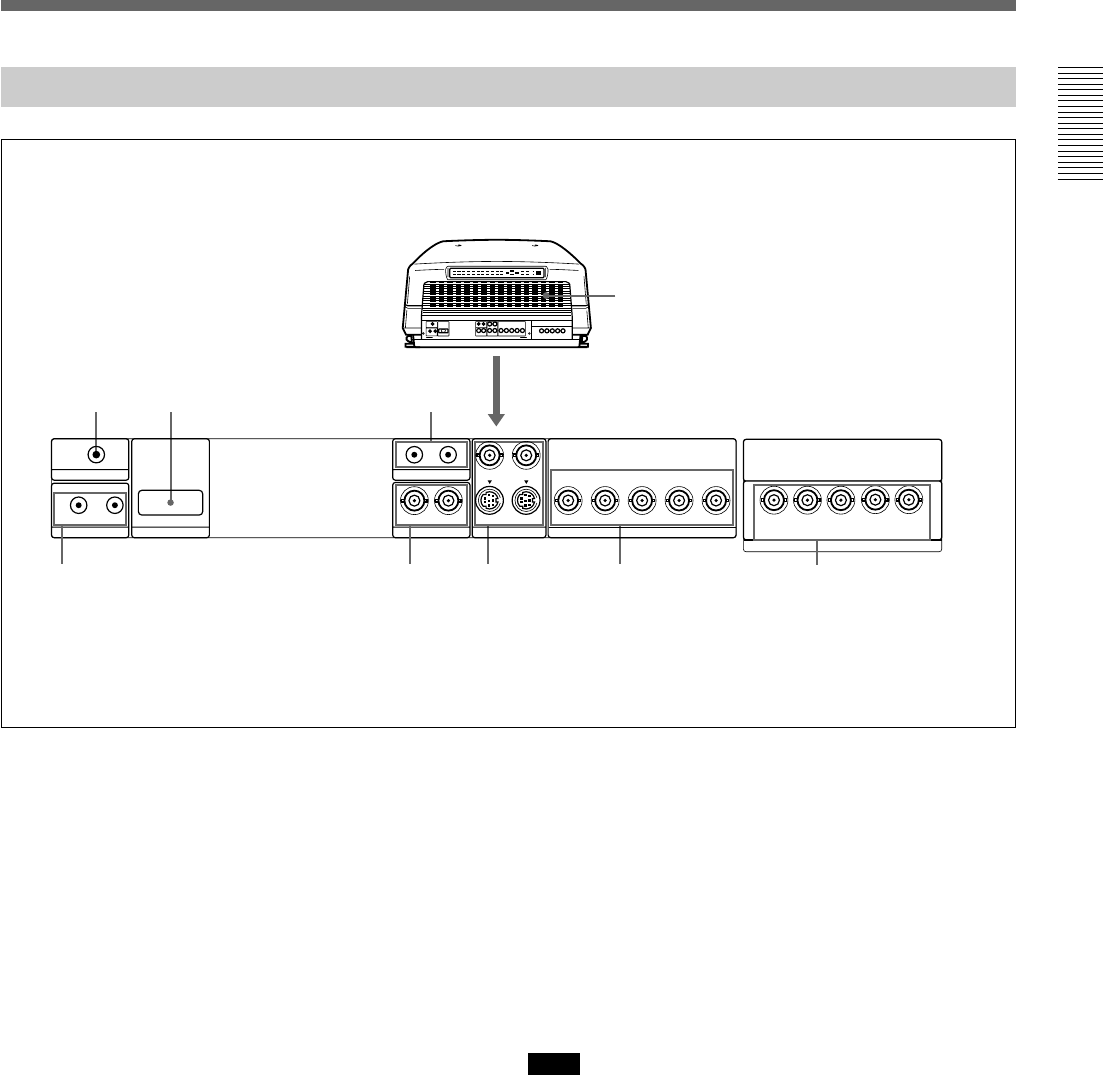

Rear
1 TRIGGER connector (minijack)
When the projector is turned on, 12 V is output and
when it is turned off, 0 V is output. However, the
connector is not used as the power source since the
power is not output.
2 RS-422A REMOTE connector (D-sub 9-pin)
Used to expand the system connections using the RS-
422A interface.
Before using the connector, remove the red cap.
3 ABL (Automatic Brightness Limiter) LINK IN/
OUT jacks (minijack)
When connecting multiple projectors, connects the
ABL LINK OUT jack to the ABL LINK IN jack on
another projector. You can synchronize the brightness
limiting point among the projectors, allowing to make
the whole screen brightness uniform.
4 CONTROL S jacks
IN/PLUG IN POWER (5 V) jack (stereo minijack):
Connects to the CONTROL S OUT jack of other
Sony equipment. Also connects to the CONTROL S
OUT jack of the supplied remote control with the
supplied remote control cable (stereo cable) to be
used as a wired remote control. In this case, this jack
supplys 5 V to the remote control as power source.
OUT jack (stereo minijack): Connects to the
CONTROL S IN jack of other Sony equipment.
Note
When using this jack, the remote control detector on the
projector does not function.
INPUT A
TRIGGER
PLUG IN POWER
CONTROL S
IN OUT
REMOTE
RS-422A
ABL LINK
IN OUT
VIDEO
S VIDEO
Y IN
C IN
INPUT A
C
R
/R-Y/P
R
R
Y
G
C
B
/B-Y/P
B
B SYNC/HD VD
OUTOUT
IN IN
9
3
2
1
56 74
8
G
Y
Y
B
C
B
/B-Y/P
B
C
SYNC/HD
VD
INPUT B
R
C
R
/R-Y/P
R
VIDEO
