PARTS LIST
6-28

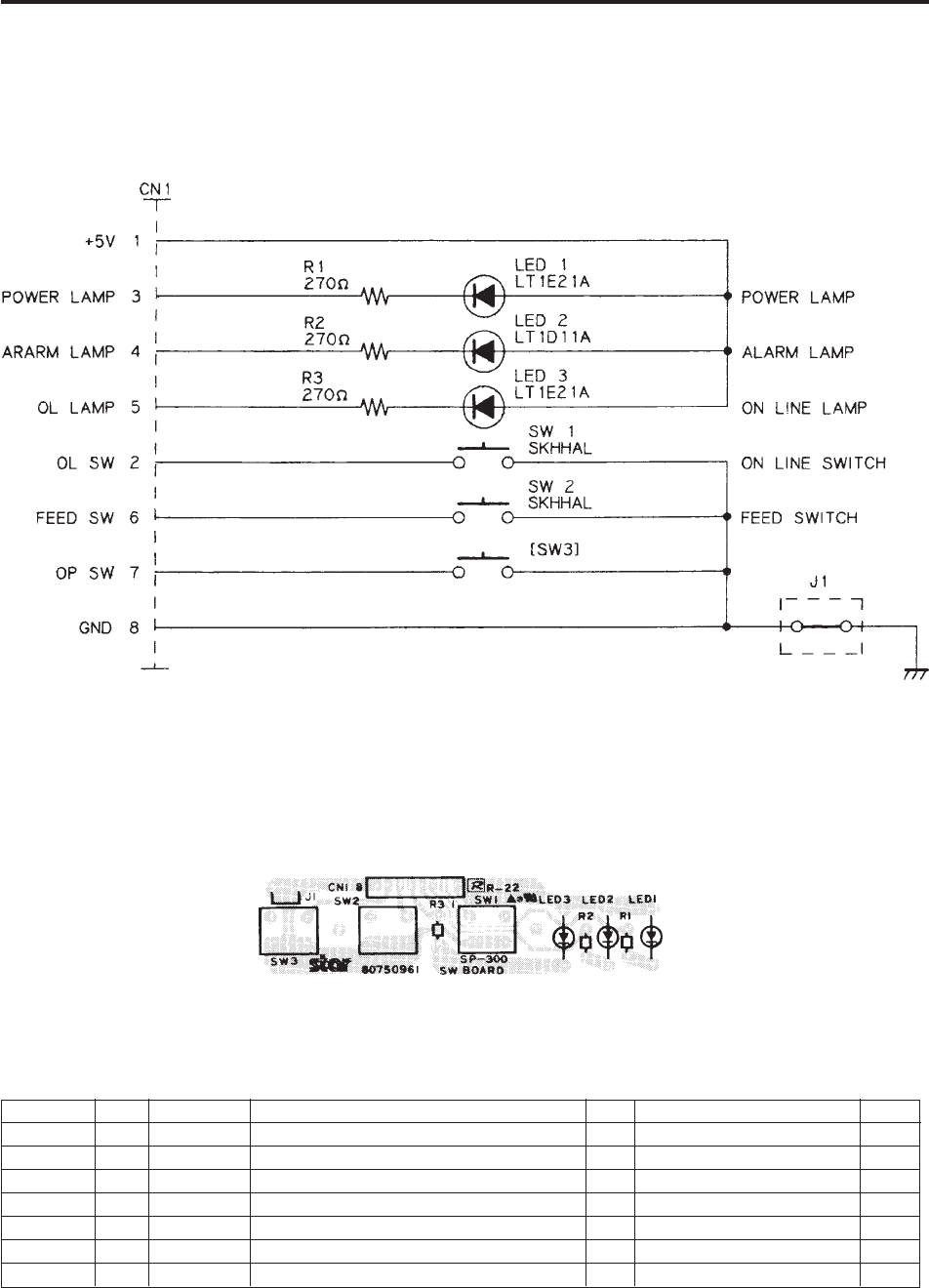

6.6 Control Panel Board
6.6.1 Circuit Diagram
6.6.2 Component Layout
6.6.3 Parts List
DRWG.NO. REV. PARTS NO. PARTS NAME Q’TY REMARKS RANK
LED1 08300058 LED LT-1E21A 1
LED2 08300081 LED LT-1D11A 1
R1-3 06052714 RD RESISTOR 270 OHM 1/6W 3
SW1-2 09010041 PUSH SWITCH SKHHAL 2
SW3 NOT MOUNTED
CN1 09100518 CONNECTOR 53025-0810 1
J1 93930001 JUMPER WIRE STP123 1
