FL INVERTER AND 15” LCD REMOVAL
FIELD REPLACEABLE UNIT DOCUMENTATION
Satellite
TM
1900 Series
TOSHIBA
Tough Enough for Today’s World

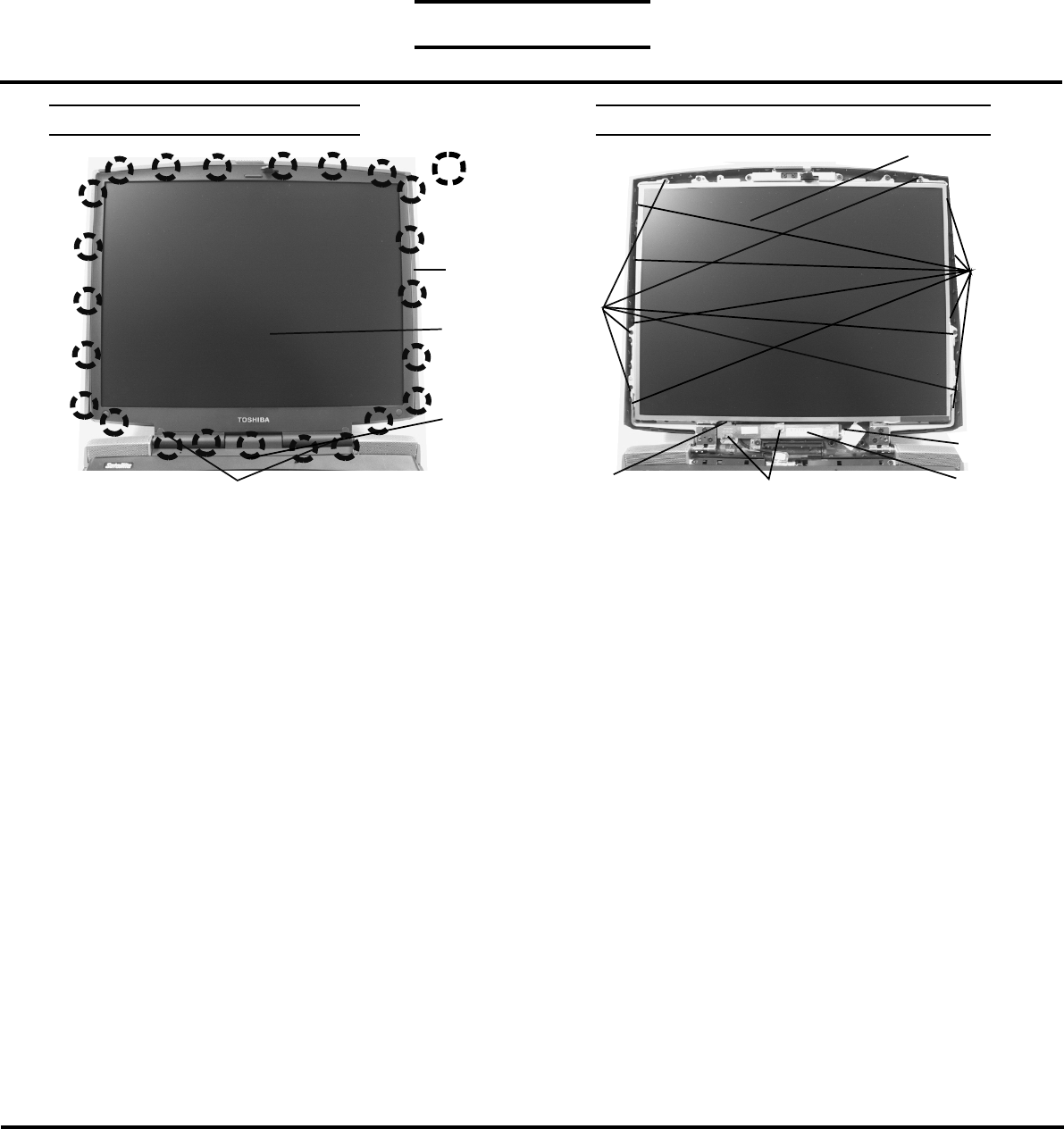

15” DISPLAY MASK REMOVAL
1. Slide the LCD/FL harness cover to the left and lift it out.
2. Remove two mask seals at the bottom corners of the
display assembly using a pair of fine-tipped tweezers.
2. Remove two M2.5x7 flat head black screws securing
the display mask.
3. There are 23 latches securing the display mask.
Carefully insert your fingers between the mask and the
LCD panel and pry open the latches starting from the
bottom six latches, to the five latches on the right
and left sides, ending with the six top latches.
1. Remove two M2x5 silver screw securing the
FL inverter board.
2. Carefully lift up the FL inverter board and
disconnect the LCD/FL cable from CN1 and the
FL cable from CN2.
3. Remove four M2X3 black screws securing the
LCD module.
5. Carefully rotate out the top of the LCD module
enough to access the display cable
6. Peel off the tape securing the LCD/FL cable and
disconnect the cable.
6. Remove eight M2x3 black screws securing the left
and right LCD brackets and separate the brackets.
Mask seals
Latch
Display
mask
LCD
LCD/FL
harness
cover
LCD module
M2x5 silver screw
FL inverter board
M2x3
black
screws
M2x3
black
screws
LCD/FL cable
FL cable
