User’s Manual 6-10
Power and Power-Up Modes

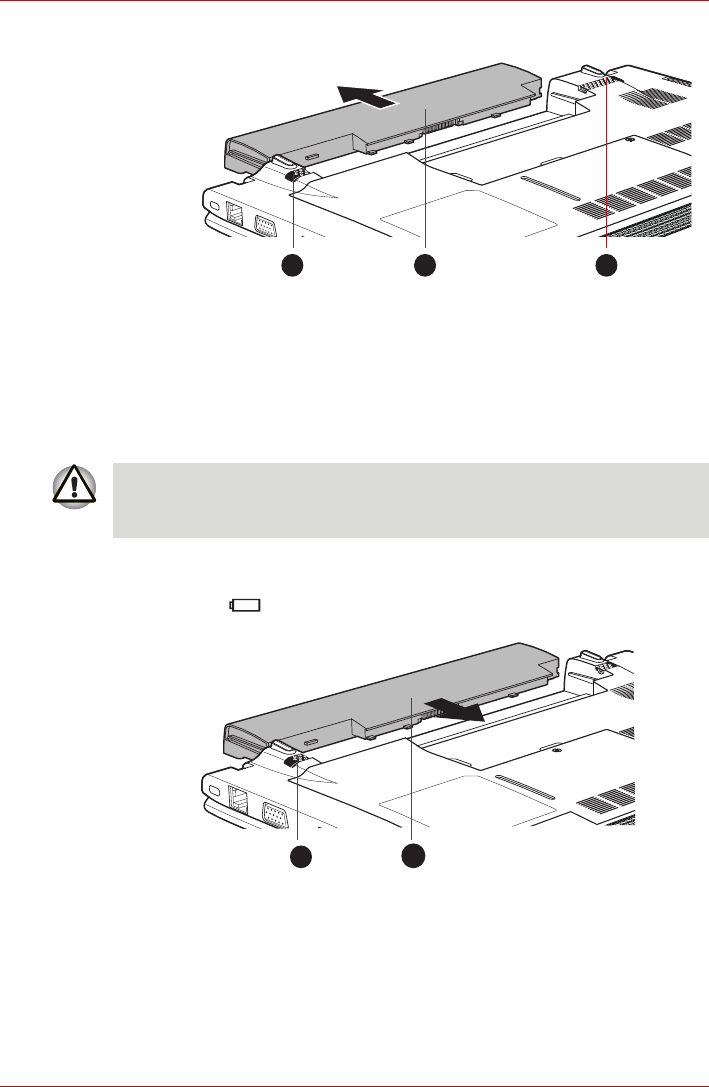

Figure 6-2 Releasing the battery pack
(Satellite/Satellite Pro/PORTÉGÉ T230/T230D)
Installing the battery pack
To install a battery pack, follow the steps as detailed below:
1. Insert the battery pack as far as it will go into the computer.
2. Ensure that the battery pack is securely in place and the battery lock is
in its lock ( ) position.
Figure 6-3 Securing the battery pack
(Satellite/Satellite Pro/PORTÉGÉ T210/T210D)
1. Battery lock 3. Battery release latch
2. Battery pack
1
2
3
Do not touch the battery release latch while holding the computer or the
battery pack might fall out due to the unintentional release of the battery
release latch and cause injuries.
1
2
