Installation
Defining a Frequency Plan
Chapter 2
49
Installation

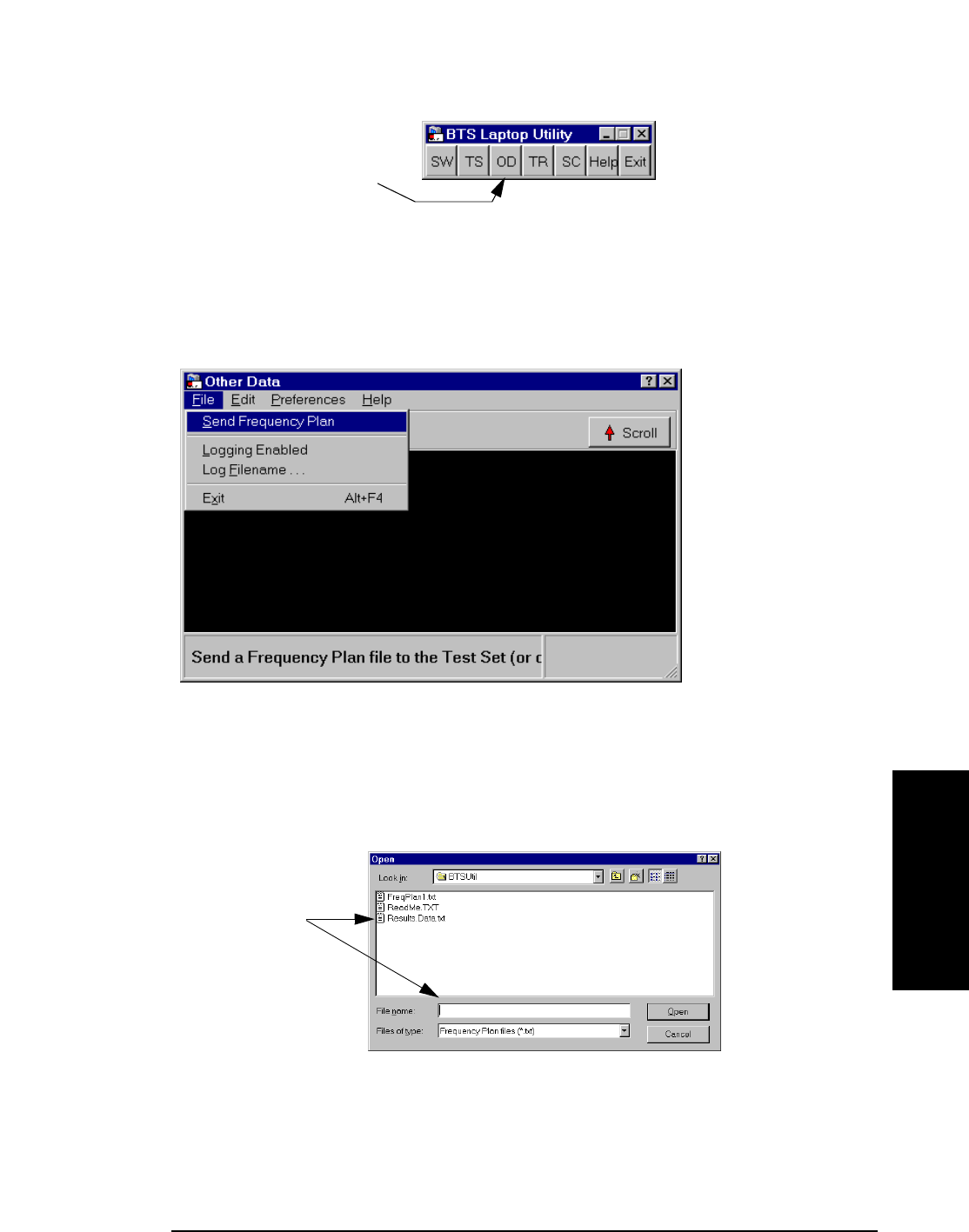

Figure 2-20 BTS Laptop Utility Program Tool Bar
Step 5. Open the Other Data window by selecting the OD button on the tool bar.
Step 6. In the Other Data window (see Figure 2-21), select File, then Send Frequency Plan.
Figure 2-21 Other Data Window
Step 7. Select the frequency plan file that you saved (see Figure 2-22). Double-click on the file
name, or select the file name and select Open. The frequency plan will be downloaded to
the Test Software.
Figure 2-22 Selecting the Saved Frequency Plan
Step 8. If all is set up correctly, transmitted characters should scroll on the Test Set screen. After
a pause, the Test Software will return to the Define Frequency Plan screen and the
transferred plan will be displayed.
Select OD to view the
Other Data window.
Select the frequency
plan that you created.
