MSL600
Installation, Operation & Maintenance Manual
IP262/Z0, Rev. AB
February 2012
1.4 As a system

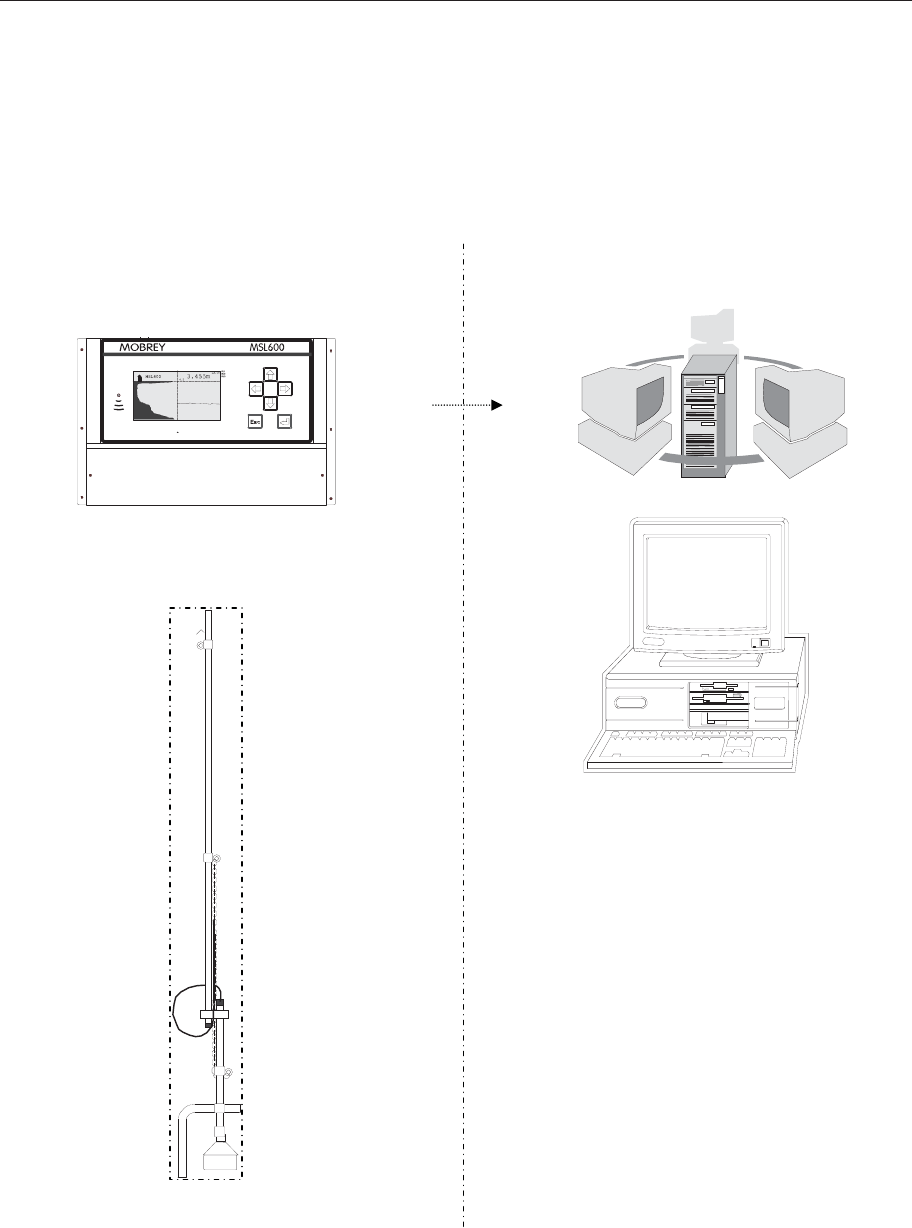

Figure (1) shows the architecture of the complete MSL600 system and where each component is intended to be
used. Install the MSL603 transducer and mounting bracket on the rotating bridge or fixed walkway over the
clarifier tank. Install the MSL600 control unit on the mounting bracket.
Figure (1): MSL600 system architecture
3 relay
outputs
RS232
4-20mA
output
MSL600 - Standalone Bridge Mount Unit
PC or
Laptop
com
p
ute
r
PLC/SCADA
Location
Fixed or rotating bridge
Location
Control room
MSL603 Transducer
