User’s Manual
ECM-3612 User’s Manual
49

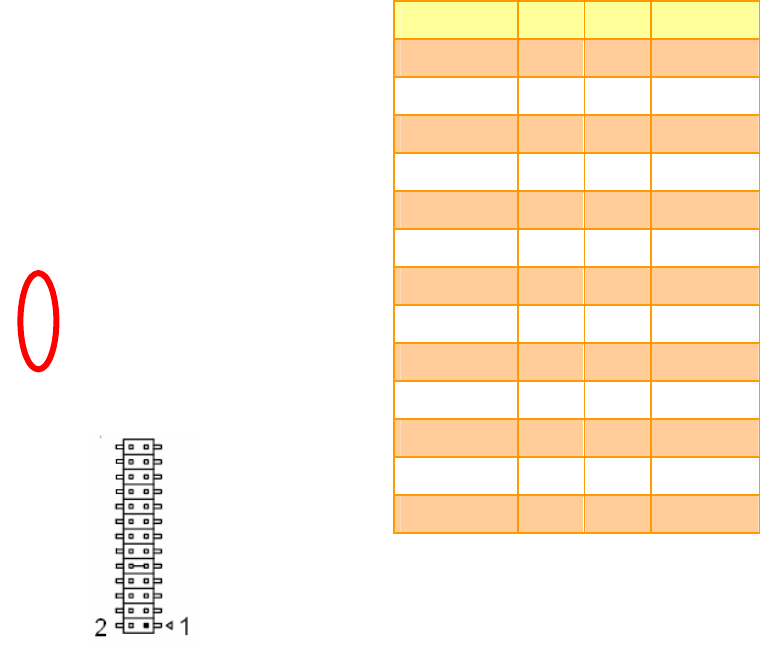

2.3.20 Parallel Port Connector (PNT1)
Signal PIN PIN Signal
NC 26 25 SLCT
GND 24 23 PE
GND 22 21 BUSY
GND 20 19 ACK#
GND 18 17 PPD7
GND 16 15 PPD6
GND 14 13 PPD5
GND 12 11 PPD4
GND 10 9 PPD3
SLIN# 8 7 PPD2
INIT# 6 5 PPD1
ERR# 4 3 PPD0
AFD# 2 1 STB#
