ASUS K8U-X Motherboard
1-23

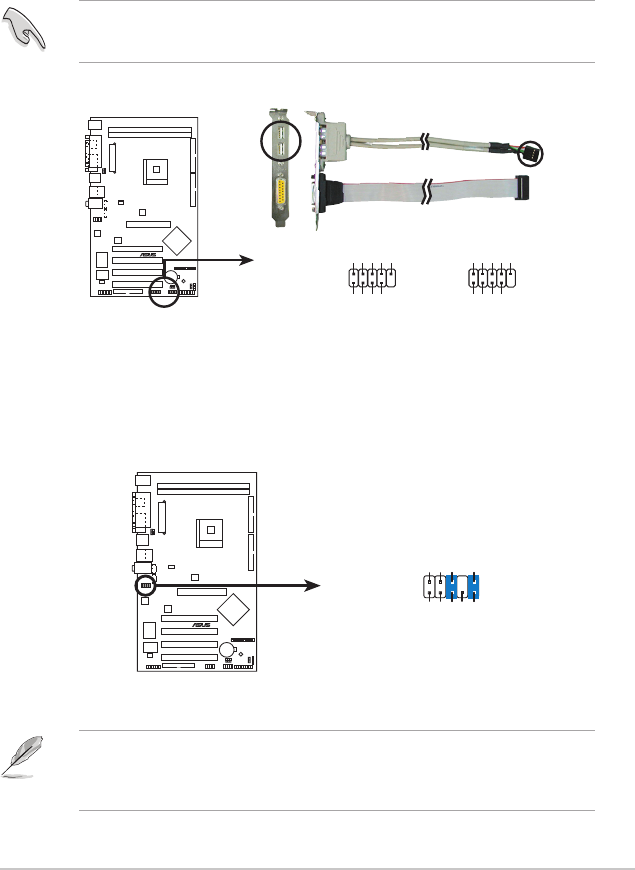

6. USB header (10-1 pin USB56, USB78)
If the USB ports on the rear panel are inadequate, a USB header is available
for additional USB ports. Connect the USB cable of the USB 2.0 module to this
header. You may install the USB module in the chassis front panel. The module
has two USB 2.0 ports for connecting next generation USB peripherals such as
high resolution cameras, scanners, and printers.
K8U-X
®
K8U-X USB 2.0 connectors
USB56
USB+5V
USB_P6-
USB_P6+
GND
NC
USB+5V
USB_P5-
USB_P5+
GND
1
USB78
USB+5V
USB_P8-
USB_P8+
GND
NC
USB+5V
USB_P7-
USB_P7+
GND
1
1.
The USB 2.0 module is purchased separately.
2.
Install the USB 2.0 driver before using the USB 2.0 feature.
7. Front panel audio connector (10-1 pin FP_AUDIO)
This is an interface for the front panel cable that allows convenient connection
and control of audio devices.
K8U-X
®
K8U-X Front panel audio connector
FP_AUDIO
BLINE_OUT_L
MIC2
Line out_R
Line out_L
BLINE_OUT_R
NC
MICPWR +5VA
AGND
Be default, the pins labeled LINE OUT_R/BLINE_OUT_R and the pins
LINE OUT_L/BLINE_OUT_L are shorted with jumper caps. Remove
the caps only when you are connecting the front panel audio cable.
