Serial ATA connectors (7-pin SATA1, SATA2)Serial ATA connectors (7-pin SATA1, SATA2)
Serial ATA connectors (7-pin SATA1, SATA2)Serial ATA connectors (7-pin SATA1, SATA2)
Serial ATA connectors (7-pin SATA1, SATA2)
These connectors are for the Serial ATA signal cables for Serial ATA
hard disk drives.
P5P800S
®

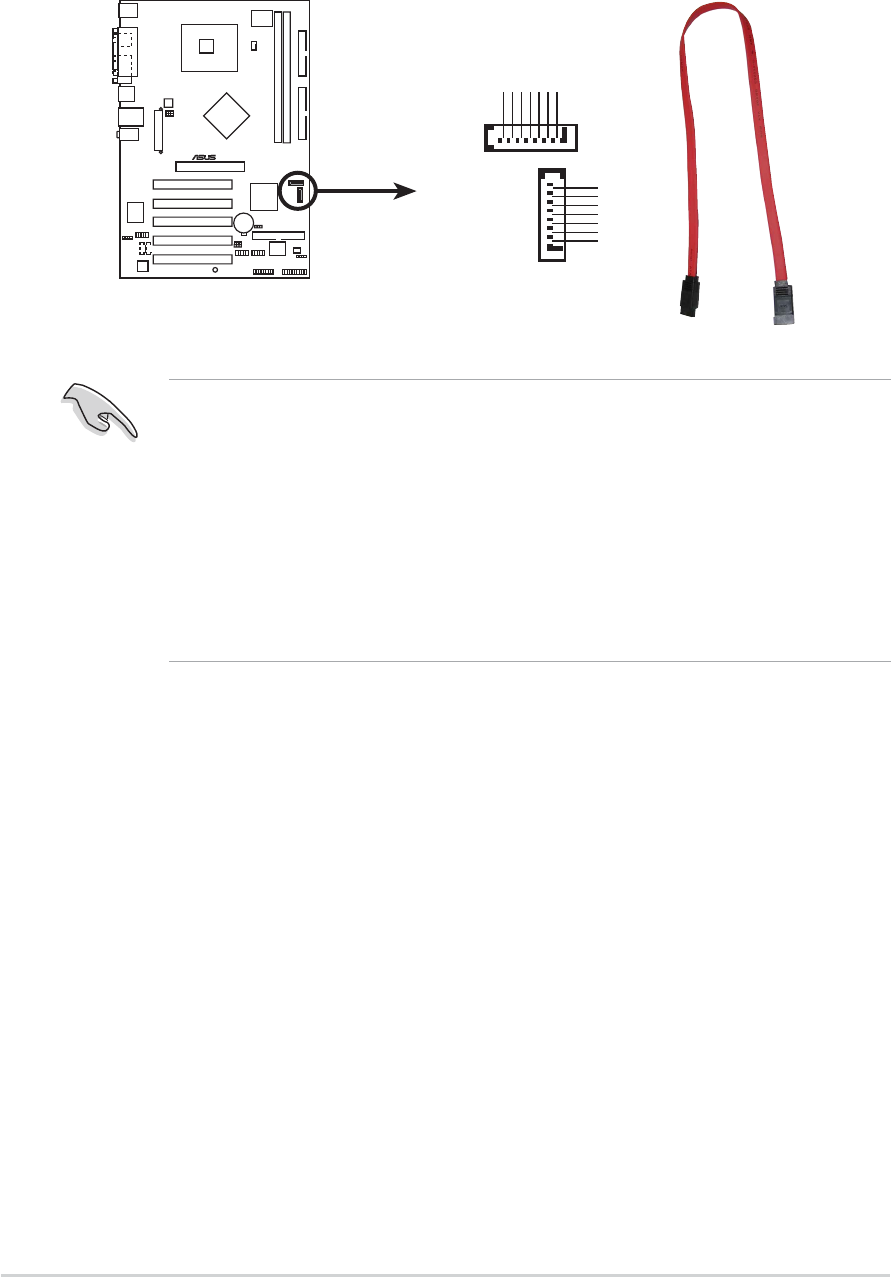

P5P800S SATA connectors
SATA1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
Important notes on Serial ATAImportant notes on Serial ATA
Important notes on Serial ATAImportant notes on Serial ATA
Important notes on Serial ATA
•
Install the Windows
®
2000 Service Pack 4 or the Windows
®
XP
Service Pack1 or later versions before using the Serial ATA feature.
• Hot plug support for Serial ATA drive and connectors are not
available in this motherboard.
• The ICH5 chipset support to one of the IDE channels (either primary
or secondary channel) is disabled in a legacy operating system (DOS,
Windows
®
98/ME) when you use the SATA connectors.
