ASUS P5WD2 PremiumASUS P5WD2 Premium
ASUS P5WD2 PremiumASUS P5WD2 Premium
ASUS P5WD2 Premium
2-332-33
2-332-33
2-33
7.7.
7.7.
7.

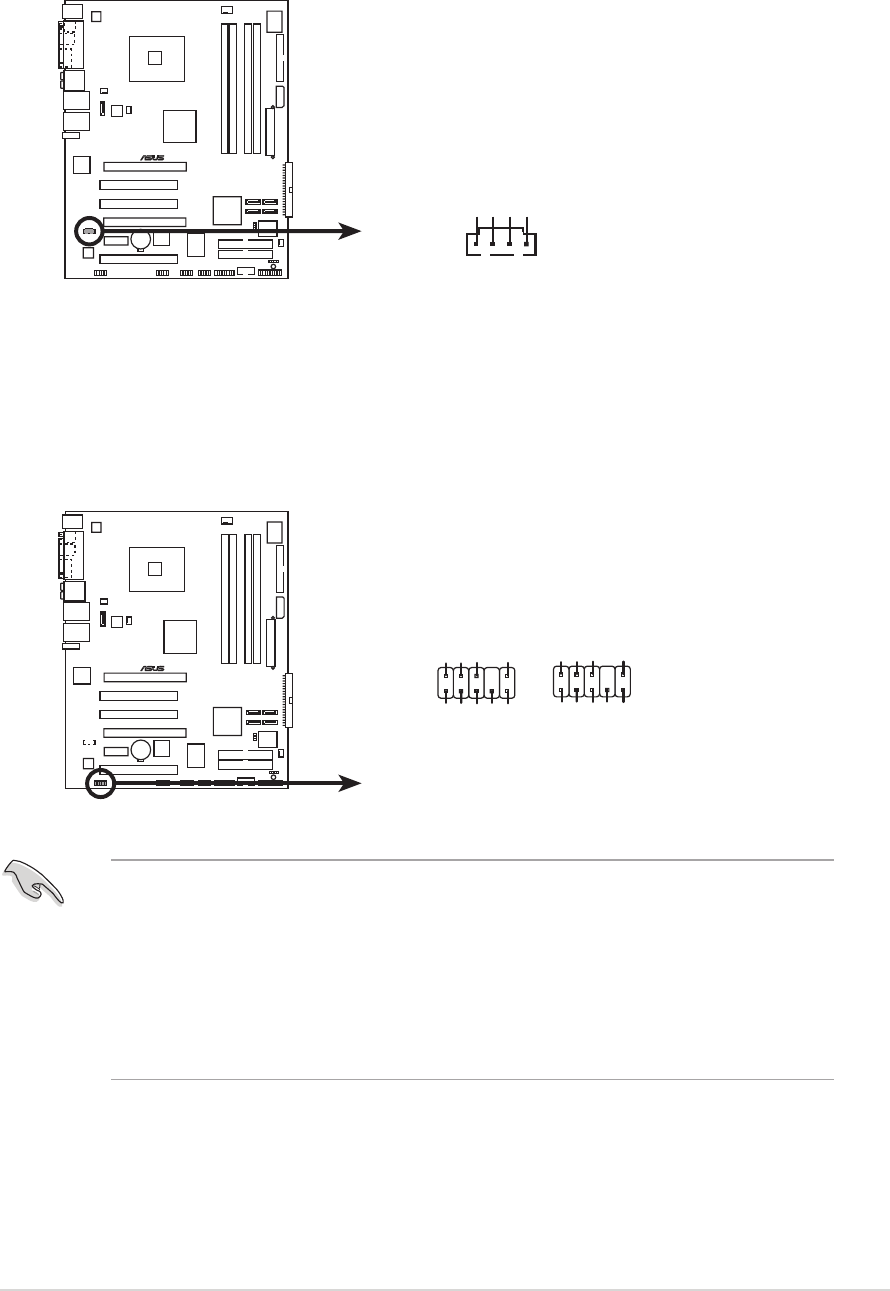

Front panel audio connector (10-1 pin AAFP)Front panel audio connector (10-1 pin AAFP)
Front panel audio connector (10-1 pin AAFP)Front panel audio connector (10-1 pin AAFP)
Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module
that supports either HD Audio or legacy AC’97 audio standard.
• We recommend that you connect a high-definition front panel audio
module to this connector to avail the motherboard high-definition
audio capability.
• By default, this connector is set to HD Audio. If you want to connect
a legacy AC `97 front panel audio module to this connector, set the
Front Panel Support Type Front Panel Support Type
Front Panel Support Type Front Panel Support Type
Front Panel Support Type item in the BIOS Setup to [AC97].
See page 4-30 for details.
6.6.
6.6.
6.
Optical drive audio connector (4-pin CD)Optical drive audio connector (4-pin CD)
Optical drive audio connector (4-pin CD)Optical drive audio connector (4-pin CD)
Optical drive audio connector (4-pin CD)
This connector is for the 4-pin audio cable that connects to the audio
connector at the back of the optical drive.
P5WD2 PREMIUM
®
P5WD2 PREMIUM Internal audio connector
CD
(black)
Right Audio Channel
Left Audio Channel
Ground
Ground
P5WD2 PREMIUM
®
P5WD2 PREMIUM Analog front panel connector
AC ‘97 audio
pin definitio
n
AAFP
NC
MIC2
Line out_R
Line out_L
NC
NC
MICPWR
NC
AGND
SENSE2_RETUR
PORT1 L
PORT2 R
PORT2 L
SENSE1_RETUR
SENSE_SEND
PORT1 R
PRESENCE#
GND
