ASUS P/I-AP55TV User’s Manual 7
III. INSTALLATION
Jumper Settings

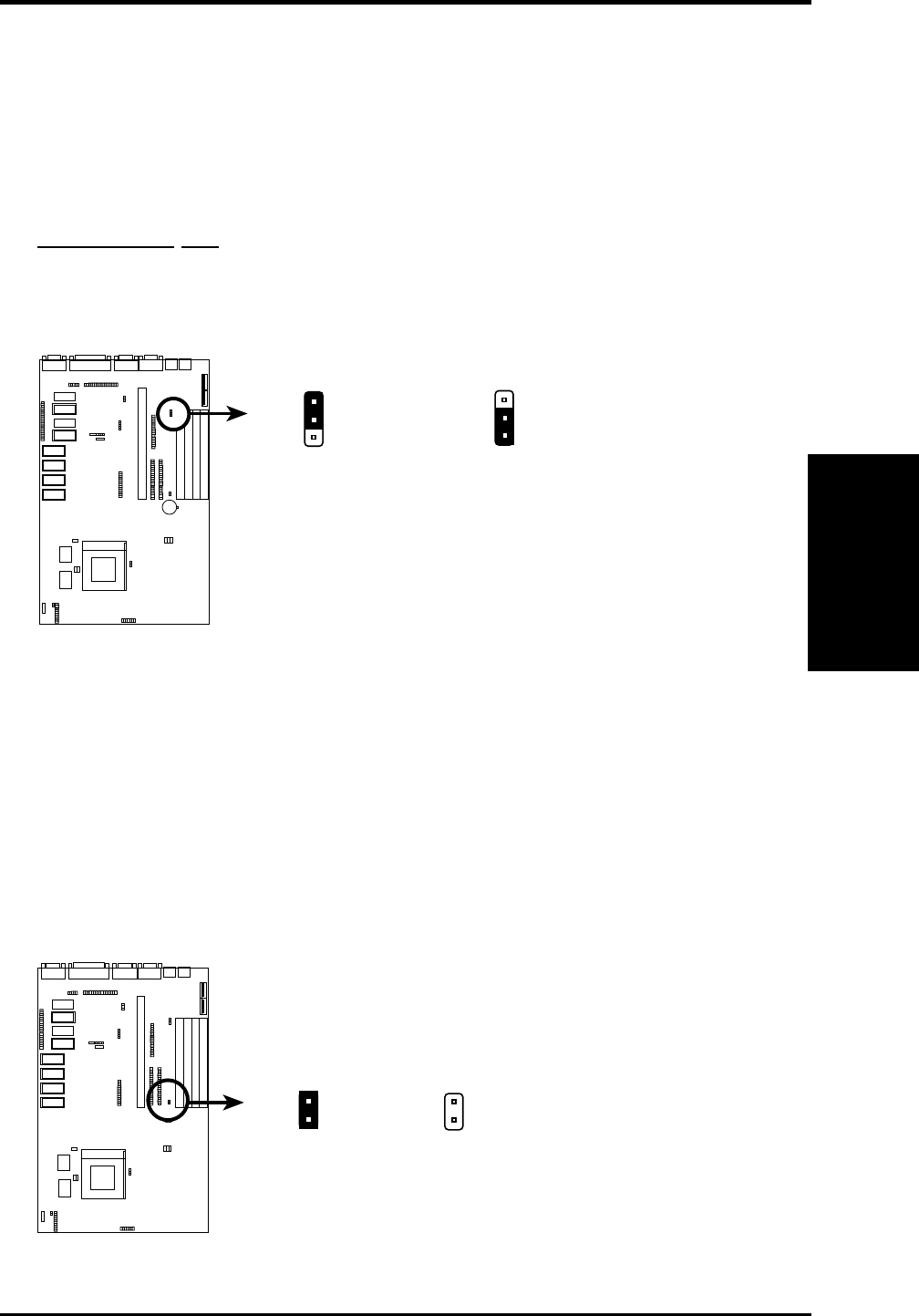

1. Flash ROM Boot Block Programming (JP6)
This sets the operation mode of the boot block area of the BIOS Flash ROM to
allow programming in the Enabled position.
Programming JP6
Disabled [1-2] (Default)
Enabled [2-3]
Boot Block Programming (Disable / Enable)
Disabled / Protected
(Default)
Enabled
1
2
3
1
2
3
JP6
JP6
2. Clear CMOS Data / Battery Test Jumper (JP5A)
The CMOS RAM is powered by the onboard button cell battery. You can test
the battery’s current by removing this jumper and attaching a current meter to
each pin. WARNING: You must unplug the power cord to your power
supply to ensure that there is no power to your motherboard. The CMOS
RAM containing BIOS setup information will be cleared by this action.
You must enter BIOS to “Load Setup Defaults” and re-enter any user infor-
mation after removing and reapplying this jumper.
Clear CMOS Data / Battery Test Jumper
JP5A
Clear CMOS Data /
Battery Test Mode
Operation
(Default)
JP5A
III. INSTALLATION
(Jumpers)
