ASUS P/I-AP55TV User's Manual 81
XI. Other Video Drivers
Select System Information (optional)
The program will check the system for possible conflicts with the device, and dis-
play both the device and system configurations in the INFO BOX. In case of a
conflict, it will issue a warning and suggest possible corrective actions.
Your ASUS audio/video motherboard is a PCI Plug-and-Play compatible: your sys-
tem will automatically allocate system resources and resolve possible conflicts be-
tween your Plug-and-Play compatible mach64 accelerator device and other expan-
sion cards.

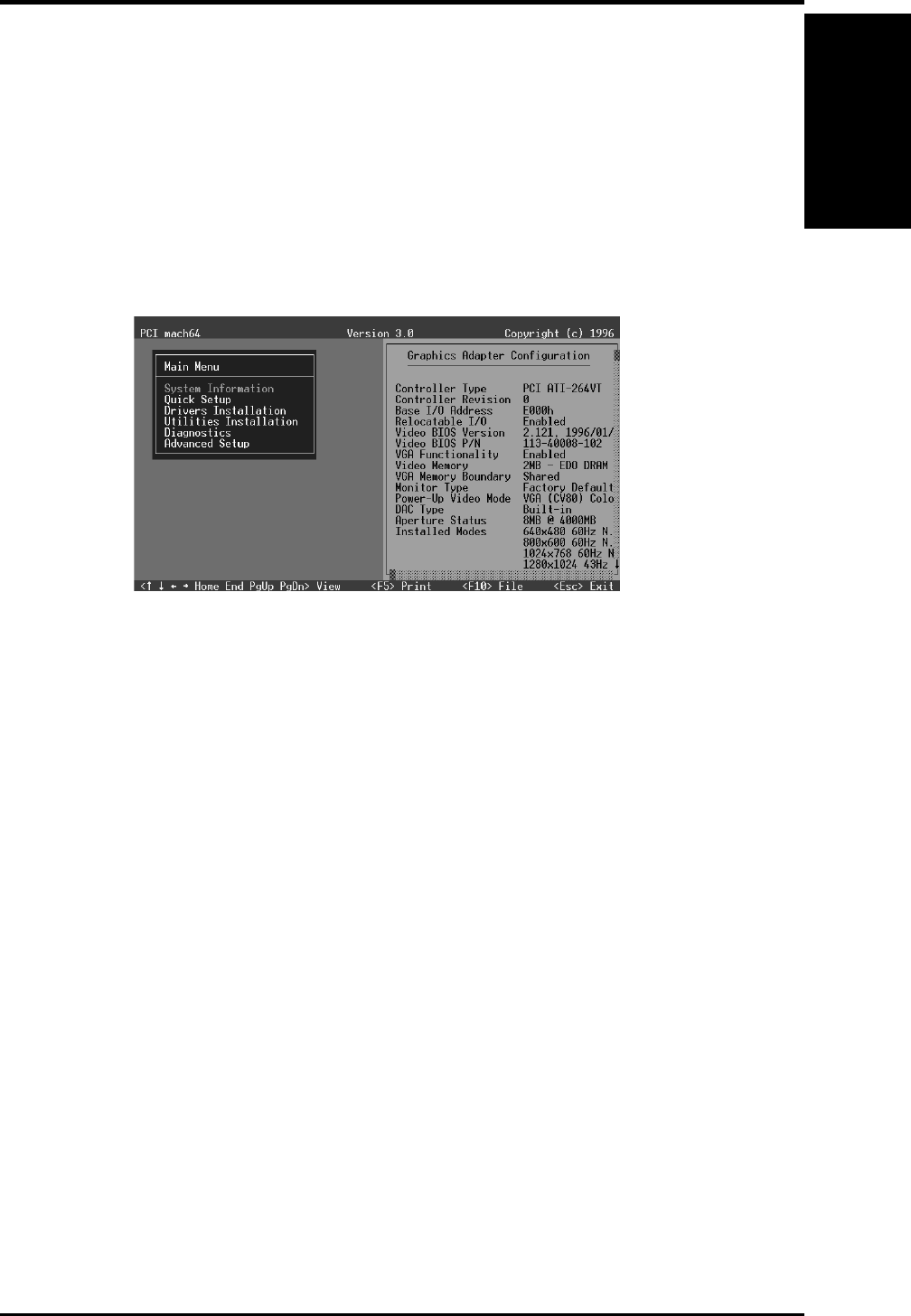

System Information
Quick Setup (optional)
Select Quick Setup to configure the accelerator device to work with your monitor.
As you highlight each monitor, the display specifications for that monitor type are
listed in the INFO BOX. Proper monitor selection is necessary for correct resolution
and refresh rate operation. You have four options to choose a correct Monitor Type.
Selecting Your Monitor Type: Factory Default/Apple.../IBM.../MIT.../NEC.../
VESA-Std.../Generic.../Read VDIF.../Custom...
Select Read VDIF... If you have a VDIF file for your monitor and wish to use its
parameters to automatically configure the mach64. Additional VDIF details are pro-
vided later in this chapter, in the section: VDIF Files
Select Custom... if none of the above applies to you, or you wish to manually con-
figure the settings. Please refer to the information provided later in this chapter in
the section: Custom Configuration
Notes On Refresh Rates:
A higher refresh rate reduces screen flicker, and therefore reduces eye strain.
Not all refresh rates are supported at all color depths. Refer to the features
section for specifications of your ASUS audio/video motherboard.
The resolution used by your software application is independent of the refresh rate.
Resolution depends on the installed software driver and selected display mode.
XI. Other Drivers
(Sys Info / Quick)
