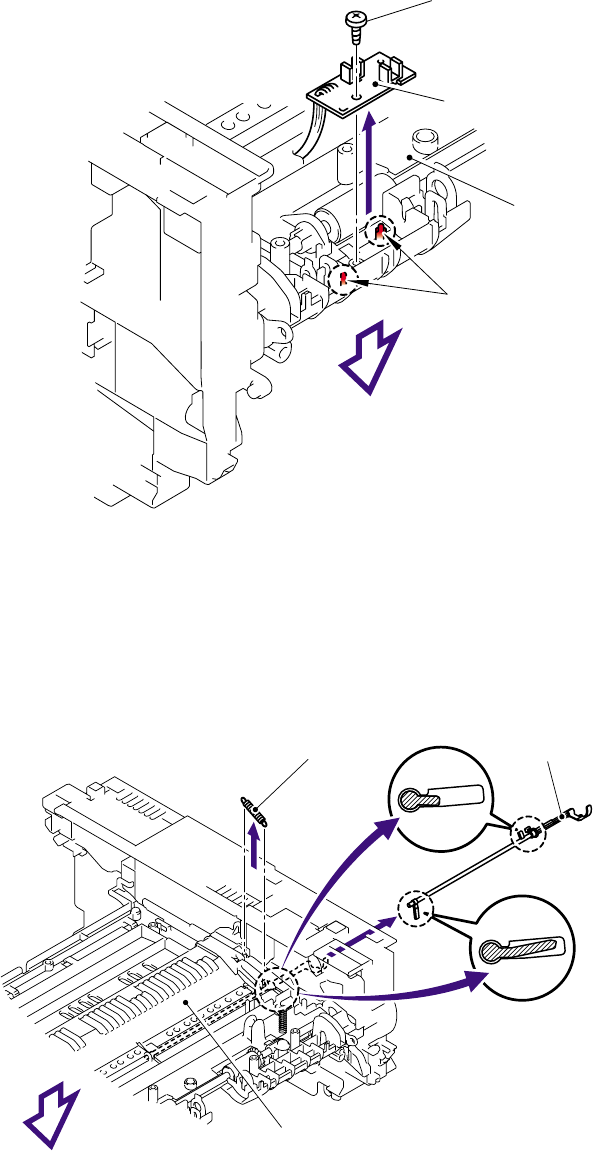

5.1.26 Regist Sensor PCB ASSY
(1) Remove the bind B M3x6, taptite screw.
(2) Release the harness from the hook and remove the regist sensor PCB ASSY.
5.1.27 Regist Rear Actuator/Regist Rear Spring
(1) Remove the regist rear spring.
(2) Remove the regist rear actuator.
Taptite, bind B M3x6
Regist sensor PCB ASSY
Chute
Hooks
Printer top side
(Printer body upside down)
Regist rear spring
Regist rear actuato
r
Chute
Printer top side
(Printer body
upside down)
1
2
