Chapter 3 Monitor
Monitor Navigation
Monitor Navigation Menu
The Cisco PVM Generate Reports navigation menu categorizes monitoring and reports into suites. When
the Monitor GUI opens, the system automatically runs the Overview report but hides the Generate
Reports menu. Clicking the expand icon at the far left side of the Monitor GUI opens the Generate
Reports menu (Figure 3-2), defaulted to Overview, with the report suite names displayed next to
individual suite expansion icons. Clicking either the suite name (such as “Hosts”) or the expansion icon
expands the list of reports available for that suite and hides the others.

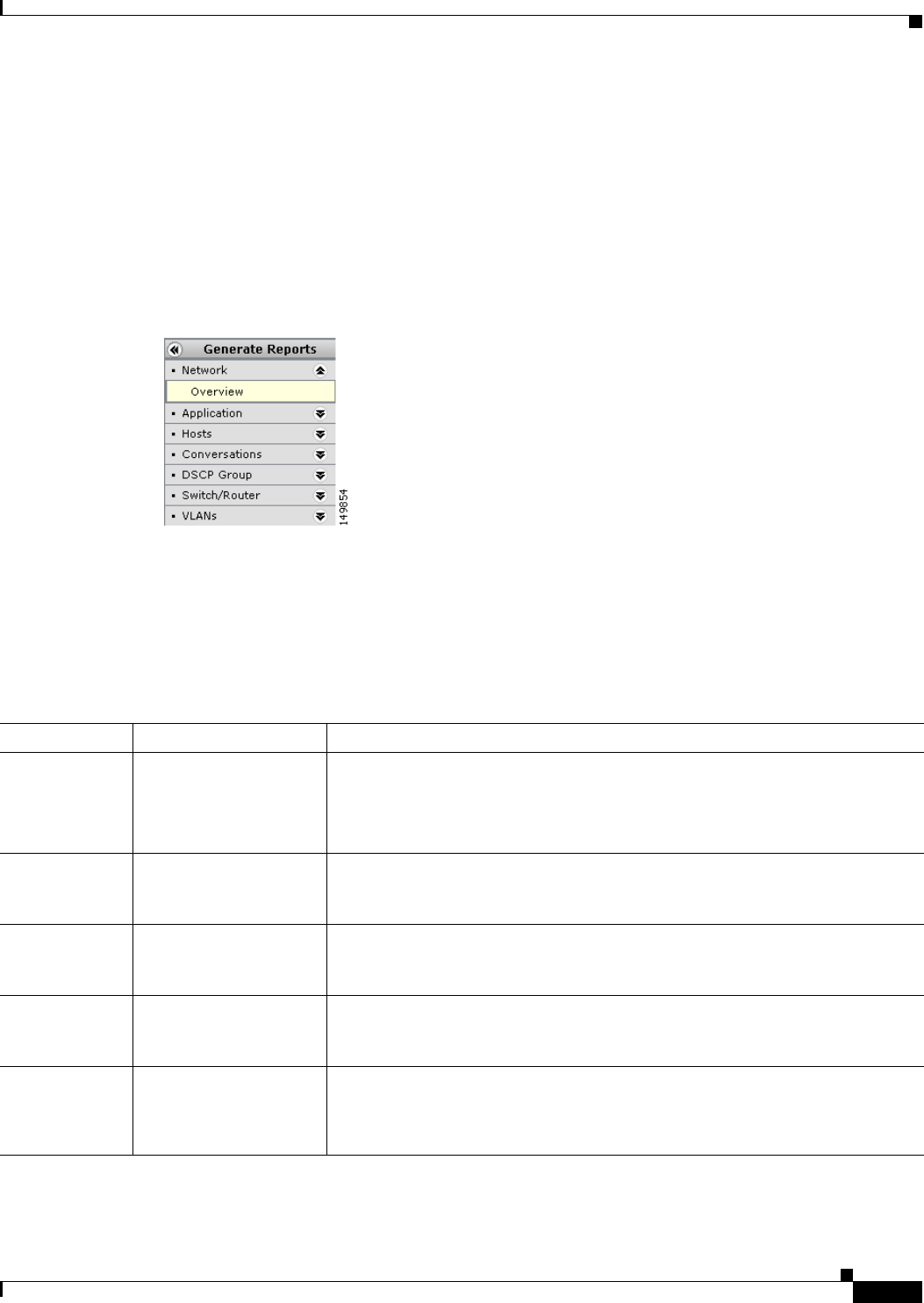

Figure 3-2 Generate Reports Menu
Report Suites
The report suites open when you click on either the suite name or the expansion icon in the navigation
menu. Table 3-1 describes the available report suites.
Table 3-1 Report Suites
Suite Available Reports Description
Overview Overview Displays, in graphic format, the TopN active hosts, DSCP applications, and
active applications monitored for the selected Data Source Group.
Note The value of N used in all Cisco PVM reports is configured under
Setup > Preferences.
Application Applications Provides the ability to see which applications are consuming network
bandwidth, and reports on the number of packets and bytes for each application
protocol.
Hosts
• Hosts IP
• Hosts MAC
Provides an analysis of the traffic for each specific host. These reports display
data on the host IP address, host name, in/out packets, in/out bytes, and
non-unicast packets collected.
Conversations Conversation Displays data on the conversation traffic between various sources and
destinations. Information displayed includes source IP address and name,
destination IP address and name, protocol, packets, and bytes.
DSCP Group
• DSCP
• DSCP Application
• DSCP Host
Displays data on specific encoded information related to how packets traverse
the network. These reports display data on the Aggregation Profile and Group
Names, packets, bytes, protocols, and host IP addresses and names.
