Printer Adjustments
Adjusting the Transparent sensor

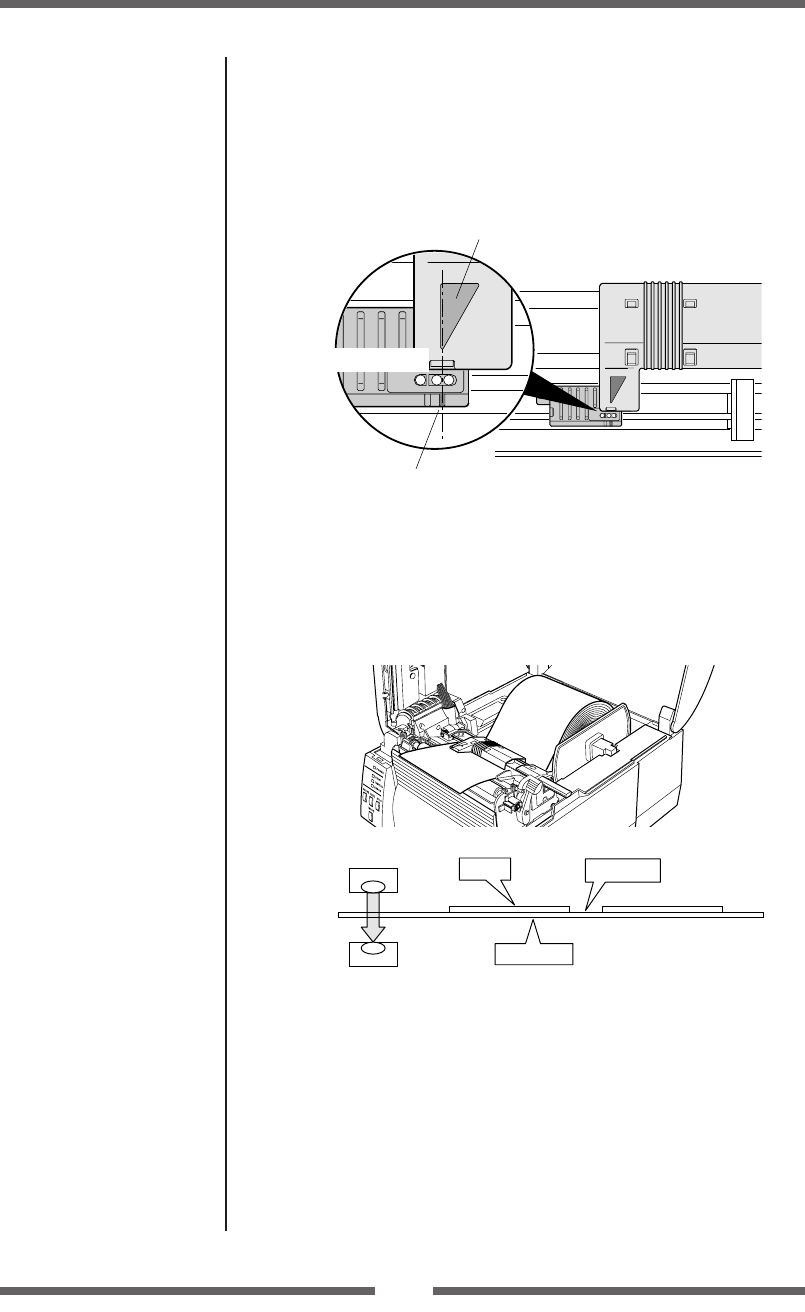

1. Open the printhead and close the sensor arm, then align the
positions of the markers on the upper sensor and the bottom
sensor.
Upper sensor
Bottom sensor
Transparent sensor marker
Upper sensor marker
Alignment of markers
4. If the PAUSE key is pushed while the MODE/REPEAT key is
pressed, the PRINT LED goes off, after the CONDITION LED
switches from lit to rapid flashing, media feeding starts, and the
sensor is automatically adjusted.
5. If automatic adjustment stops normally, the PRINT LED and
CONDITION LED return to their original status. If it stops
abnormally (adjustment impossible), the CONDITION LED and
ERROR LED flash.
6. If the STOP key is pushed, it exits sensor adjustment mode.
2. Select the transparent sensor, and open the sensor arm.
3. Install only the liner media (label backing paper) with the label
media removed so that it will pass between the platen roller and
the media sensor. (Be careful that media with black marks does
not pass the media sensor.) Then close the sensor arm and the
printhead.
Label
Liner media
Media gap
Bottom sensor
Upper sensor
Media Setting (p.23)
Sensor Adjustments
Sensor Selection Method
(Transparent ↔ Reflective)
(p.34)
