Printer Adjustments
36

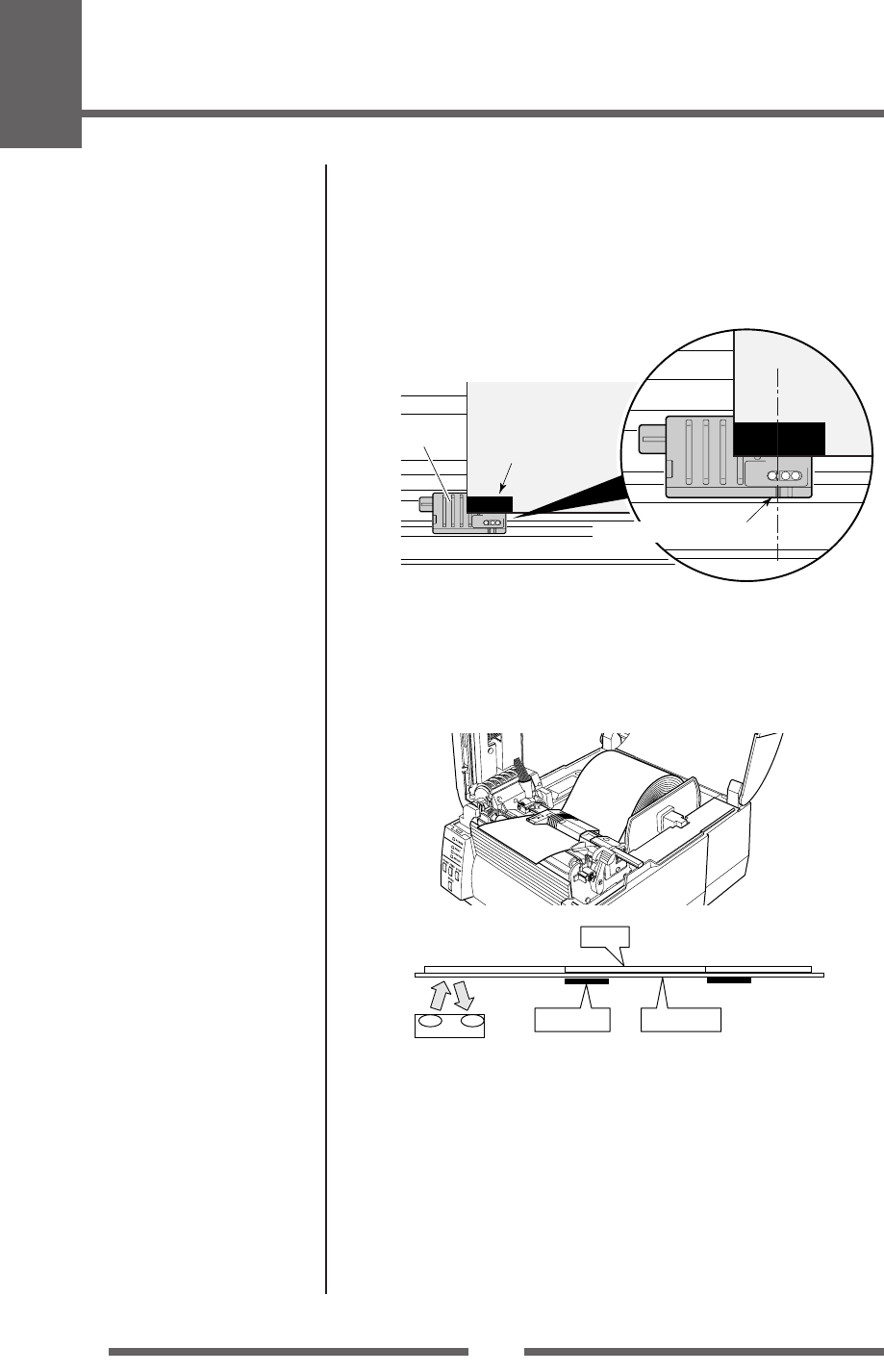

Adjusting the Reflective sensor
1. Open the printhead and the sensor arm, then align the position
of the sensor marker of the bottom sensor is at the center of
the black mark on the media.
Black mark
Media
Bottom sensor
Reflective sensor marker
Black mark
Black mark
Label
Liner media
Bottom sensor
4. If the PAUSE key is pushed while the MODE/REPEAT key is
pressed, PRINT LED goes off, the CONDITION LED switches
from lit to rapid flashing, media feeding starts, and the sensor is
automatically adjusted.
5. If automatic adjustment stops normally, the PRINT LED and
CONDITION LED return to their original status. If it does not
stop normally (adjustment impossible), the CONDITION LED
and ERROR LED flash.
6. If the STOP key is pushed, it exits sensor adjustment mode.
2. Select the reflective sensor.
3. With the reflective sensor selected, install the label media so
that it is between the platen roller and the media sensor.
(Be careful that black mark and media gap do not pass the media
sensor.) Then close the sensor arm and the printhead.
Sensor Adjustments
Sensor Selection Method
(Transparent ↔ Reflective)
(p.34)
