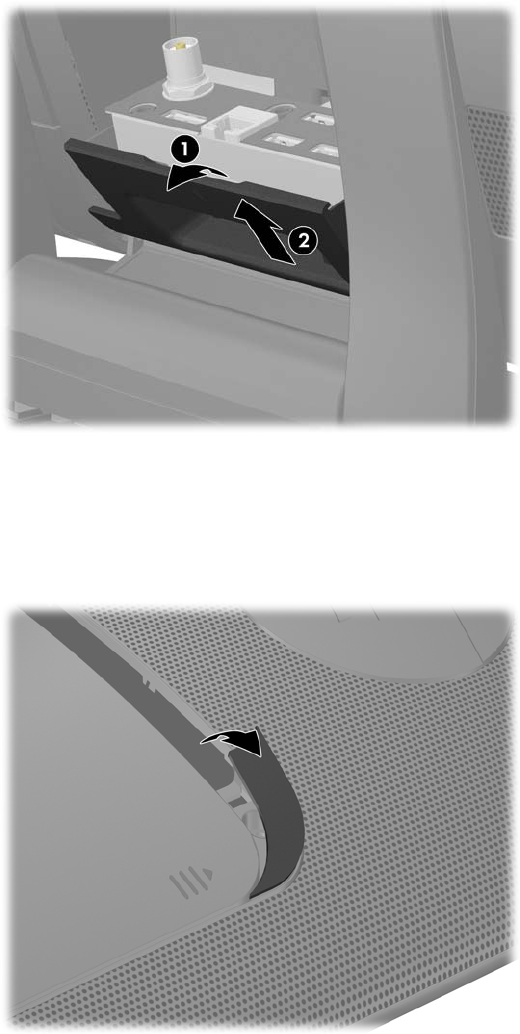

9. Remove the small center panel below the rear ports by pulling out the top of the panel (1) then
lifting the panel off the computer (2).
Figure 2-8 Removing the Center Panel
10. Before removing the memory access panel, you must remove the small cover plate that hides
the screw used to secure the panel to the chassis. Lift up on the bottom of the cover plate
located next to the upper inside corner of the access panel and lift the cover plate off the rear of
the computer.
Figure 2-9 Removing the Access Panel Screw Cover Plate
16 Chapter 2 Hardware Upgrades ENWW
