17. Replace the screw cover plate, pressing the top of the cover plate in position first then pressing
the bottom of the cover plate in position.

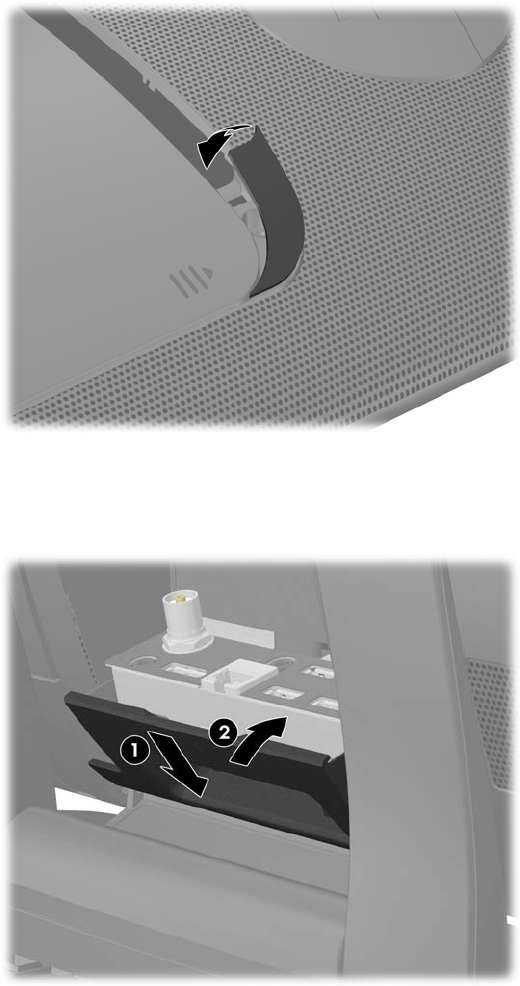

Figure 2-16 Replacing the Access Panel Screw Cover Plate
18. Replace the small center panel below the rear ports by inserting the bottom of the panel into
position first (1) then rotating the top of the panel onto the computer so that it snaps in place (2).
Figure 2-17 Replacing the Center Panel
19. Reconnect all cables that were removed from the rear ports.
20. Close the rear port access door.
21. If the rear port security cover was removed, replace the cover.
22. If a security lock was installed on the rear of the computer, replace the lock.
23. Reconnect the power cord into the wall outlet and turn on the computer. The computer
automatically recognizes the additional memory when you turn on the computer.
20 Chapter 2 Hardware Upgrades ENWW
