2-24
Installing the Series 5400zl Switches
Installation Procedures
Installing the Series 5400zl
Switches
Connecting the Power Supply Shelf

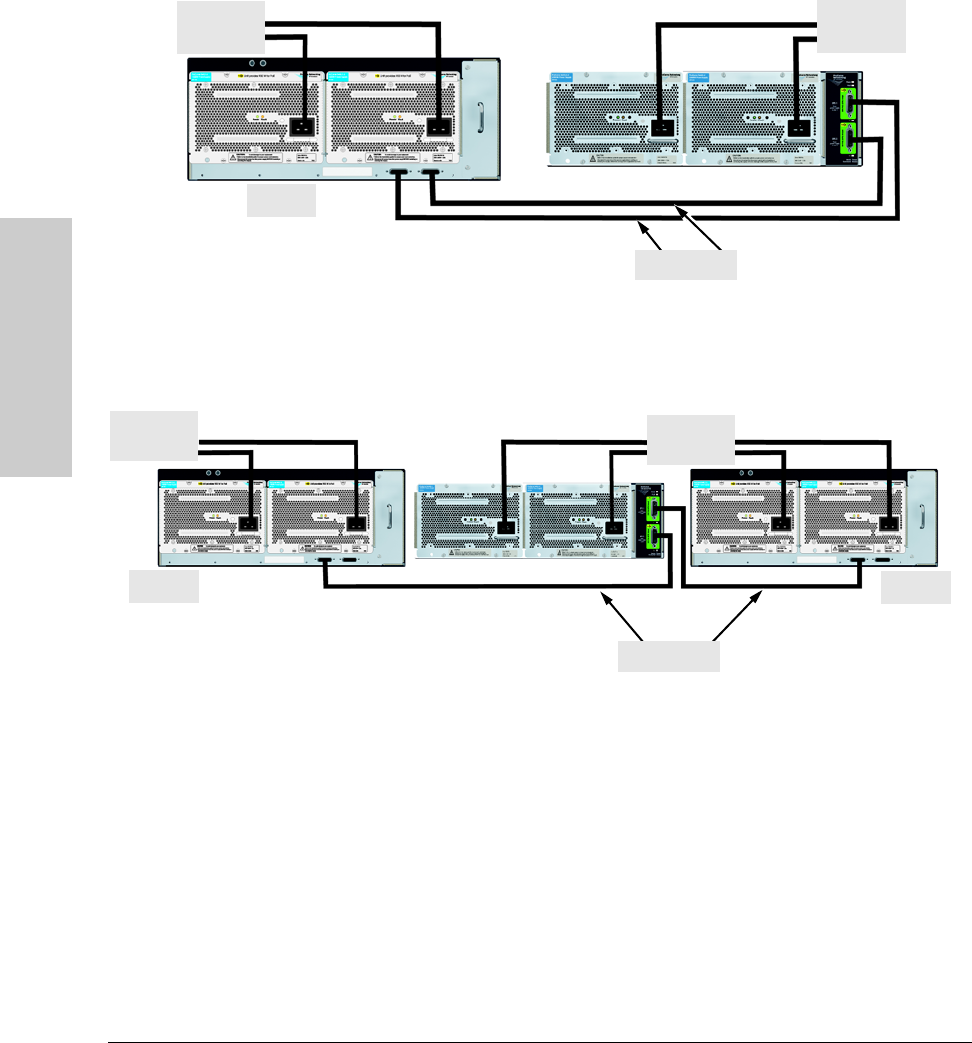

Figure 2-12. Connecting the EPS to one 5406zl switch
Figure 2-13. Connecting the EPS to two 5406zl switches
Although these examples show the EPS connecting to the 5406zl switch, it can
also be connected to a 5412zl switch in the same manner. These examples also
show the switch and the EPS using the J8713A power supply, the J8712A
power supply can also be used. It depends on how much PoE power is
required.
For more information on PoE requirements see the Power over Ethernet
(PoE) for zl and yl Products, Planning and Implementation Guide.
To Po w er
Source
EPS Cables
To P o we r
Source
5406zl
EPS Cables
5406zl
5406zl
To Pow er
Source
To Po w er
Source
