Appendix A. Connector pin assignments
*These are not used on the NumberNine S3 Savage4 AGP card.

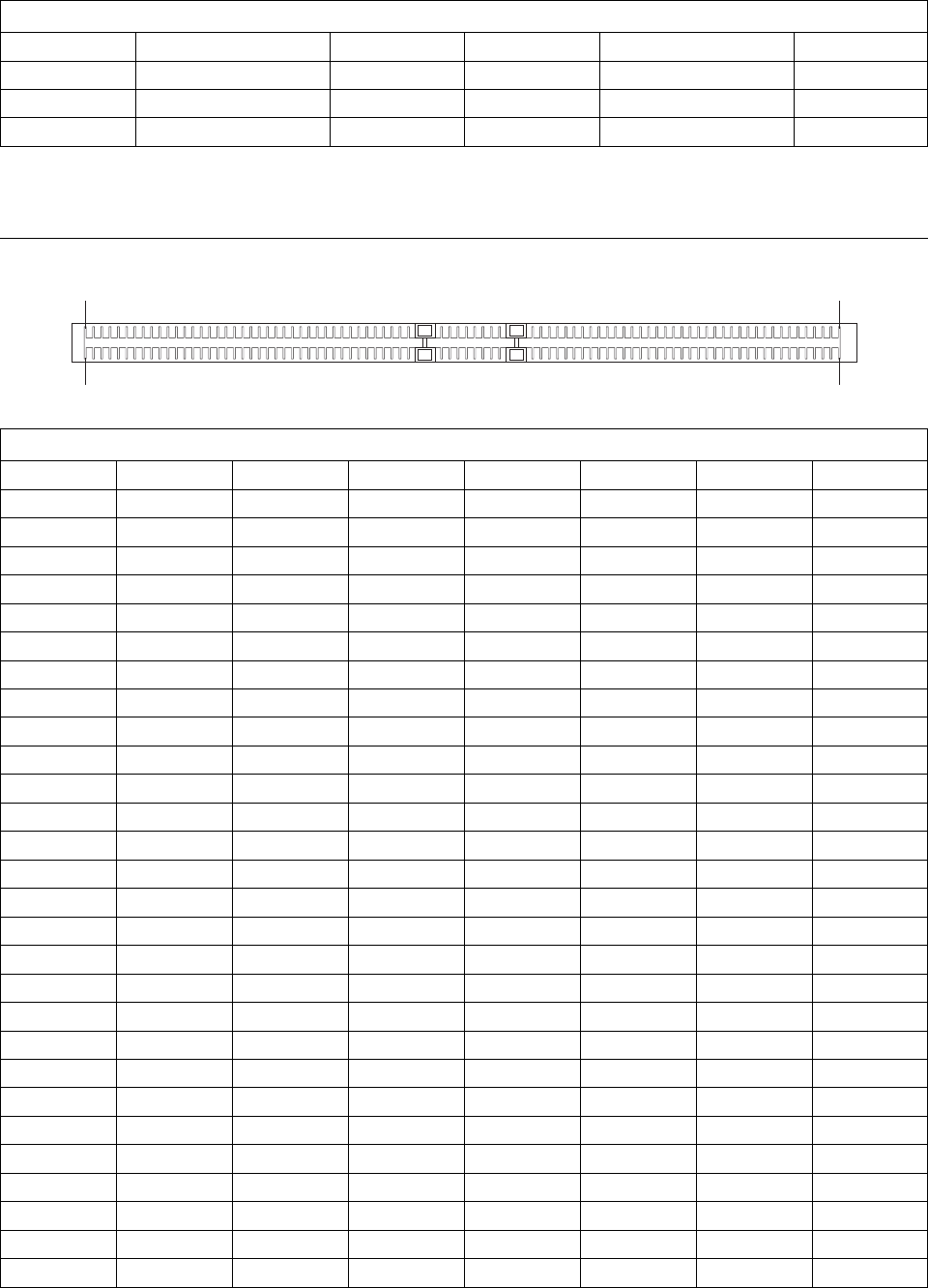

Memory connectors
1
93
92
184
Figure 17. Monitor port connector pin assignments—DVI MicroCross section
Pin Signal I/O Pin Signal I/O
C1 Red video out O C2 Green video out O
C3 Analog blue O C4 Analog horizontal sync O
C5 Video/pixel clock return N/A
Figure 18 (Page 1 of 2). System memory connector pin assignments
Pin Signal Pin Signal Pin Signal Pin Signal
A1 Gnd B1 Gnd A47 NC B47 NC
A2 LDQA8 B2 LDQA7 A48 NC B48 NC
A3 Gnd B3 Gnd A49 NC B49 NC
A4 LDQA6 B4 LDQA5 A50 NC B50 NC
A5 Gnd B5 Gnd A51 Vref B51 Vref
A6 LDQA4 B6 LDQA3 A52 Gnd B52 Gnd
A7 Gnd B7 Gnd A53 SCL B53 SA0
A8 LDQA2 B8 LDQA1 A54 Vdd B54 Vdd
A9 Gnd B9 Gnd A55 SDA B55 SA1
A10 LDQA0 B10 LCFM A56 SVdd B56 SVdd
A11 Gnd B11 Gnd A57 SWP B57 SA2
A12 LCTMN B12 LCFMN A58 Vdd B58 Vdd
A13 Gnd B13 Gnd A59 RSCK B59 RCMD
A14 LCTM B14 NC A60 Gnd B60 Gnd
A15 Gnd B15 Gnd A61 RDQB7 B61 RDQB8
A16 NC B16 LROW2 A62 Gnd B62 Gnd
A17 Gnd B17 Gnd A63 RDQB5 B63 RDQB6
A18 LROW1 B18 LROW0 A64 Gnd B64 Gnd
A19 Gnd B19 Gnd A65 RDQB3 B65 RDQB4
A20 LCOL4 B20 LCOL3 A66 Gnd B66 Gnd
A21 Gnd B21 Gnd A67 RDQB1 B67 RDQB2
A22 LCOL2 B22 LCOL1 A68 Gnd B68 Gnd
A23 Gnd B23 Gnd A69 RCOL0 B69 RDQB0
A24 LCOL0 B24 LDQB0 A70 Gnd B70 Gnd
A25 Gnd B25 Gnd A71 RCOL2 B71 RCOL1
A26 LDQB1 B26 LDQB2 A72 Gnd B72 Gnd
A27 Gnd B27 Gnd A73 RCOL4 B73 RCOL3
A28 LDQB3 B28 LDQB4 A74 Gnd B74 Gnd
26 Technical Information Manual
