Reference Manual for the 54 Mbps Wireless Router WGR614 v4
2-6 Introduction
December 2003
The Router’s Front Panel
The front panel of the WGR614 v4 router contains the status LEDs described below.

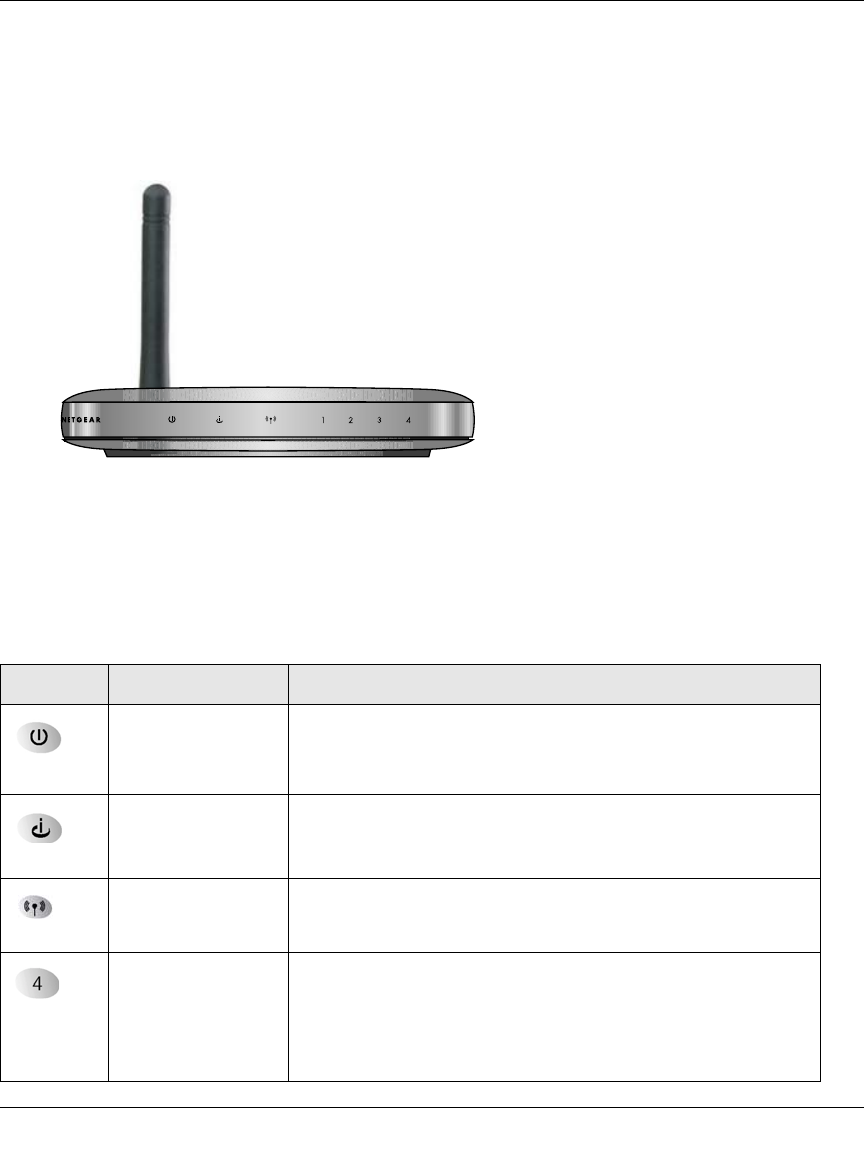

Figure 2-1: WGR614 v4 Front Panel
You can use some of the LEDs to verify connections. Viewed from left to right, Table 2-1
describes the LEDs on the front panel of the router. These LEDs are green when lit.
Table 2-1. LED Descriptions
Label Activity Description
Power
On
Off
Power is supplied to the router.
Power is not supplied to the router.
Internet
On
Blink
The Internet (Wide Area Network) port has detected a link with an
attached device.
Data is being transmitted or received by the Internet port.
Wireless
On Indicates that the Wireless port is initialized.
Local
On (Green)
Blink (Green)
On (Amber)
Blink (Amber)
Off
The Local (LAN) port has detected link with a 100 Mbps device.
Data is being transmitted or received at 100 Mbps.
The Local port has detected link with a 10 Mbps device.
Data is being transmitted or received at 10 Mbps.
No link is detected on this port.
