NETGEAR WGR614 v4 Network Router User Manual



Reference Manual for the 54 Mbps Wireless Router WGR614 v4
Maintenance 5-5
December 2003
Viewing a List of Attached Devices
The Attached Devices menu contains a table of all IP devices that the router has discovered on the
local network. From the Main Menu of the browser interface, under the Maintenance heading,
select Attached Devices to view the table, shown below.

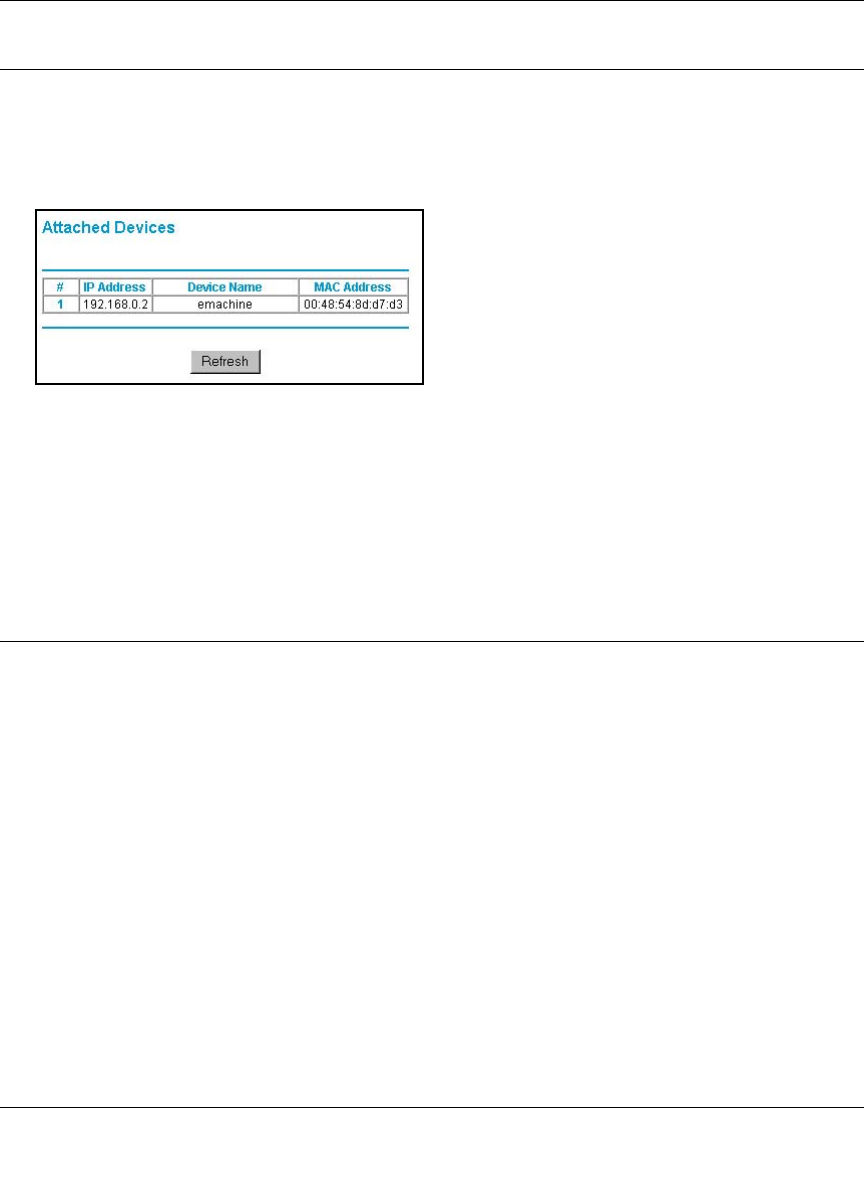

Figure 5-4: Attached Devices menu
For each device, the table shows the IP address, NetBIOS Host Name (if available), and Ethernet
MAC address. Note that if the router is rebooted, the table data is lost until the router rediscovers
the devices. To force the router to look for attached devices, click the Refresh button.
Upgrading the Router Software
The routing software of the WGR614 v4 router is stored in FLASH memory, and can be upgraded
as new software is released by NETGEAR. Upgrade files can be downloaded from Netgear's
website. If the upgrade file is compressed (.ZIP file), you must first extract the binary (.BIN) file
before sending it to the router. The upgrade file can be sent to the router using your browser.
Note: The web browser used to upload new firmware into the WGR614 v4 router must support
HTTP uploads. NETGEAR recommends using Microsoft Internet Explorer or Netscape Navigator
4.0 or above.
