Setting the menu items

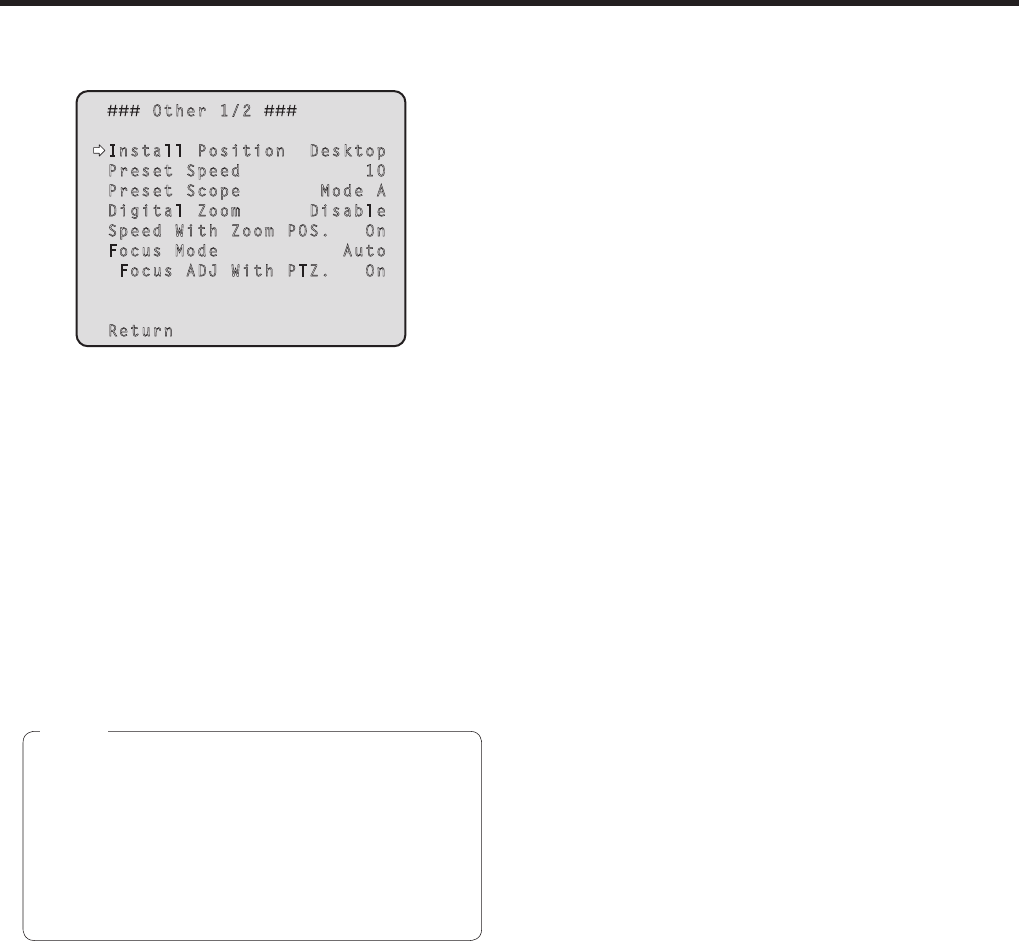

Other 1/2 screen
Other 1/2
Install Position Desktop
Preset Speed 10
Preset Scope Mode A
Digital Zoom Disable
Speed With Zoom POS. On
Focus Mode Auto
Focus ADJ With PTZ. On
Return
Install Position [Desktop, Hanging]
“Desktop” or “Hanging” is selected here as the method
used to install the unit.
Desktop: Stand‑alone installation
Hanging: Suspended installation
When “Hanging” has been selected, the top, bottom,
left and right of the images will be reversed, and
up/down/left/right control for panning and tilting will
also be reversed.
Preset Speed [1 to 30]
There are 30 preset pan‑tilt operation speeds of when
regenerating the camera direction and other information
which are registered in the preset memory.
If a high value is selected for the Preset Speed
setting, the image on the screen may shake when
operation stops.
When connecting the unit to the AW‑RP655 for
use, the “DIAGONAL SPEED (P/T SETTING)”
setting of the AW‑RP655 takes effect.
To change the Preset Speed, change the
AW‑RP655 setting.
Notes
Preset Scope [Mode A, Mode B, Mode C]
Selected here are the setting items to be recalled when
the contents of the preset memory are regenerated.
Mode A: Pan, Tilt, Zoom (including digital zoom), Focus,
Iris, Gain, White‑BAL
Mode B: Pan, Tilt, Zoom (including digital zoom), Focus,
Iris
Mode C: Pan, Tilt, Zoom (including digital zoom), Focus
Digital Zoom [Disable, Enable]
“Enable” or “Disable” is set here for the digital zoom
function.
If zooming is performed toward the Tele end beyond the
maximum position when “Enable” has been selected, the
digital zoom can be operated continuously. Zooming will
stop temporarily at the position where the optical zoom
and digital zoom are switched so after it has stopped at
this position, proceed with zooming again.
When the setting is changed to “Disable” while already in
the digital zoom region, the zoom will automatically move
to the maximum position of the optical zoom.
Speed With Zoom POS. [Off, On]
“On” or “Off” is set here for the function used to adjust the
camera direction’s adjustment speed in conjunction with
the zoom magnification.
When “On” is set, the panning and tilting operations will
become slower in the zoom status.
This function has no effect during preset operations.
Focus Mode [Auto, Manual]
“Auto” or “Manual” is set here for the focusing function.
Auto: The subjects are always brought into focus
automatically.
Manual: The focus is operated manually.
Focus ADJ With PTZ. [Off, On]
“On” or “Off” is set here for the function which
compensates for out‑of‑focusing when it occurs during
panning, tilting or zooming operations at the manual
focus setting.
When “Off” is set, adjust the focus as required after
zooming or set the focus to the auto mode. This item can
be selected only when “Manual” has been selected as the
“Focus Mode” setting.
Return
Use this to return to the previous menu.
