Service Manual
Disassembly and Reassembly
5-14
1. Follow step 1 through step 4 in Cover Unit
Disassembly
2. Remove the Main Board
3. Remove the SMPS

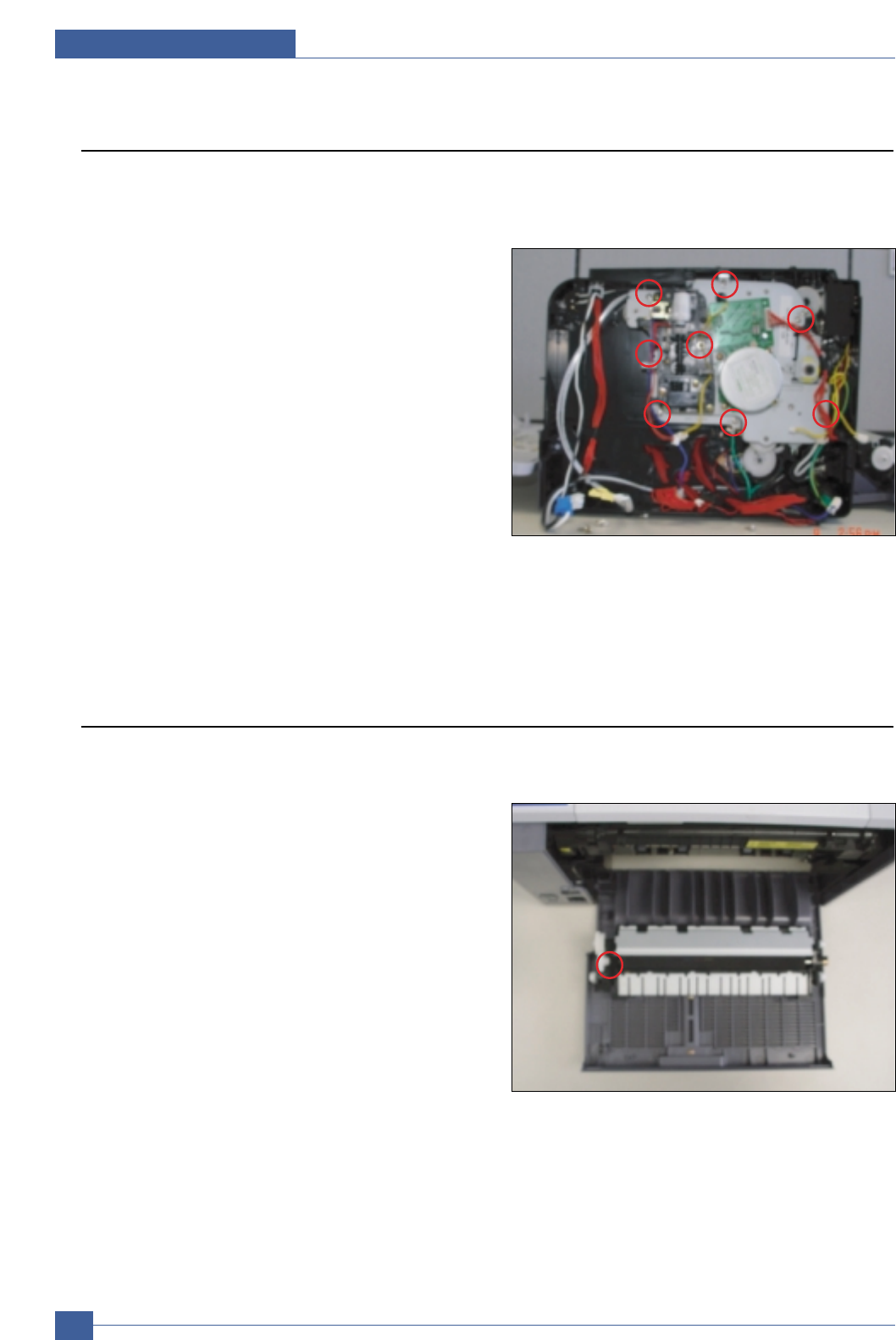

4. Unscrew 8 screws and then take out the Drive Ass’y.
5.4.7 Drive Ass’y
1. Open Rear Cover. 2. Pull back the hook, which holds the Roller, like below
picture and remove the Transfer Roller
5.4.8 Transfer Roller
