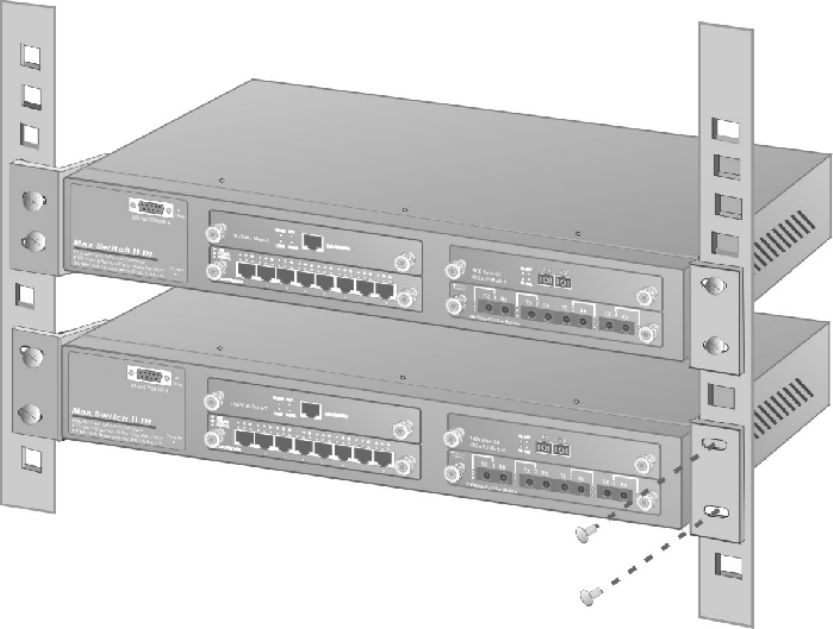

Figure 4-3. Figure 2-5. Mount the Modular Switch
in an EIA standard 19-inch Rack
Note: For proper ventilation, allow at least 4 inches (10 cm) of
clearance on the front and 3.4 inches (8 cm) on the back of the
switch. This is especially important for enclosed rack installations.
Power On
After all network cables are connected, plug the power cord into the
power socket on the back panel and the other end into a power
outlet. Turn the power on using the power switch on the back panel.
Check the front panel Power indicator to see if power is properly
supplied. The switch uses a universal power supply that requires no
additional adjustment.
22
