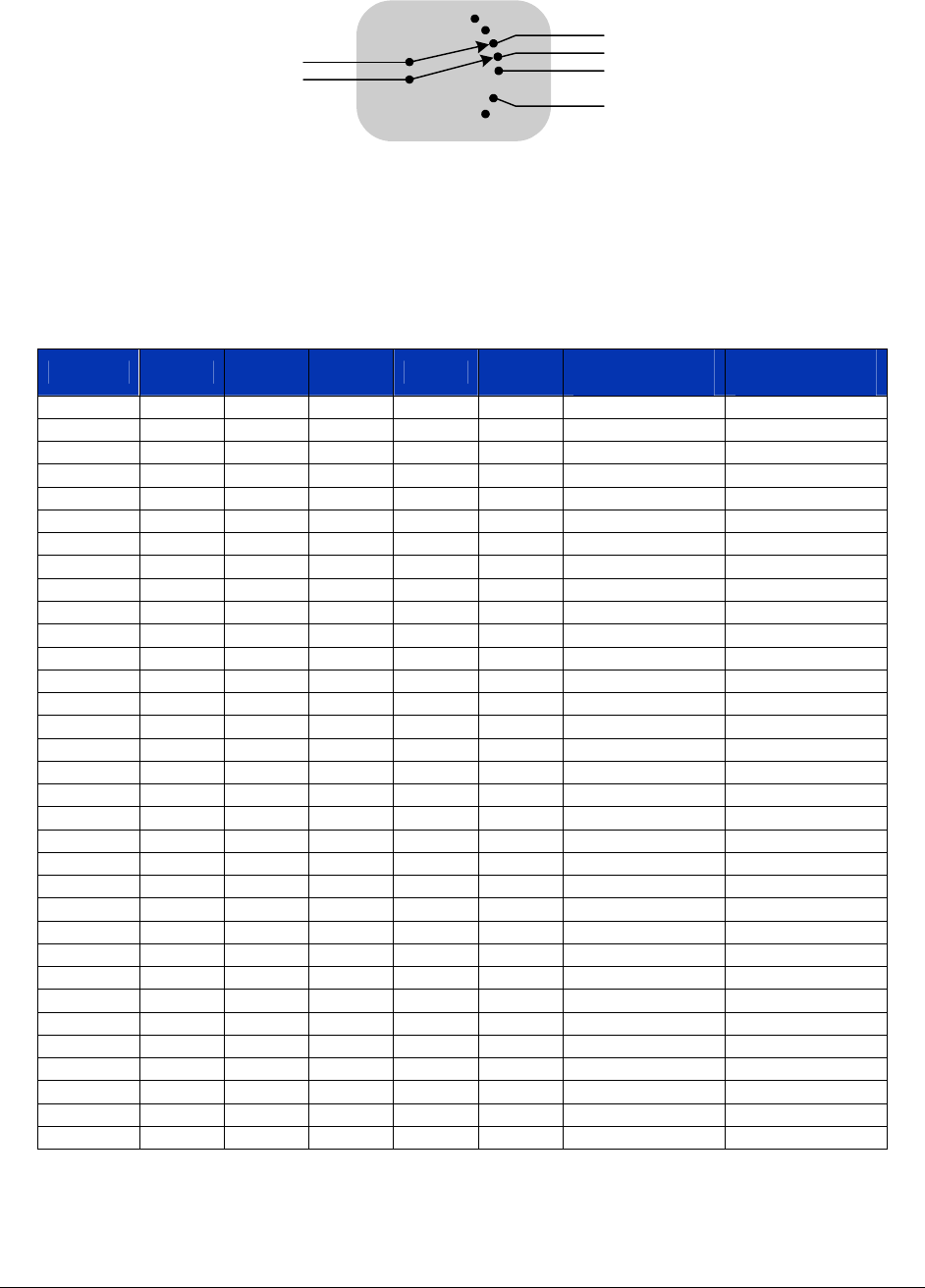

32 SM8000 Series Operation
2 x N Non-Blocking Switch Configuration
1
1
2
3
N
0
2
block
.
.
.
-1
F
IGURE 3-7: 2 X N NON-BLOCKING SWITCH CONFIGURATION
T
ABLE 3-4: CONTROL CODES FOR 2 X N NON-BLOCKING CONFIGURATION
RESET* D4 D3 D2 D1 D0
Common 1
Active Channel
Common 2
Active Channel
0 x x x x x 0 reset -1 reset
1 0 0 0 0 0 1 0 block
1 0 0 0 0 1 2 1
1 0 0 0 1 0 3 2
1 0 0 0 1 1 4 3
1 0 0 1 0 0 5 4
1 0 0 1 0 1 6 5
1 0 0 1 1 0 7 6
1 0 0 1 1 1 8 7
1 0 1 0 0 0 9 8
1 0 1 0 0 1 10 9
1 0 1 0 1 0 11 10
1 0 1 0 1 1 12 11
1 0 1 1 0 0 13 12
1 0 1 1 0 1 14 13
1 0 1 1 1 0 15 14
1 0 1 1 1 1 16 15
1 1 0 0 0 0 17 16
1 1 0 0 0 1 18 17
1 1 0 0 1 0 19 18
1 1 0 0 1 1 20 19
1 1 0 1 0 0 21 20
1 1 0 1 0 1 22 21
1 1 0 1 1 0 23 22
1 1 0 1 1 1 24 23
1 1 1 0 0 0 25 24
1 1 1 0 0 1 26 25
1 1 1 0 1 0 27 26
1 1 1 0 1 1 28 27
1 1 1 1 0 0 29 28
1 1 1 1 0 1 30 29
1 1 1 1 1 0 31 30
1 1 1 1 1 1 block
