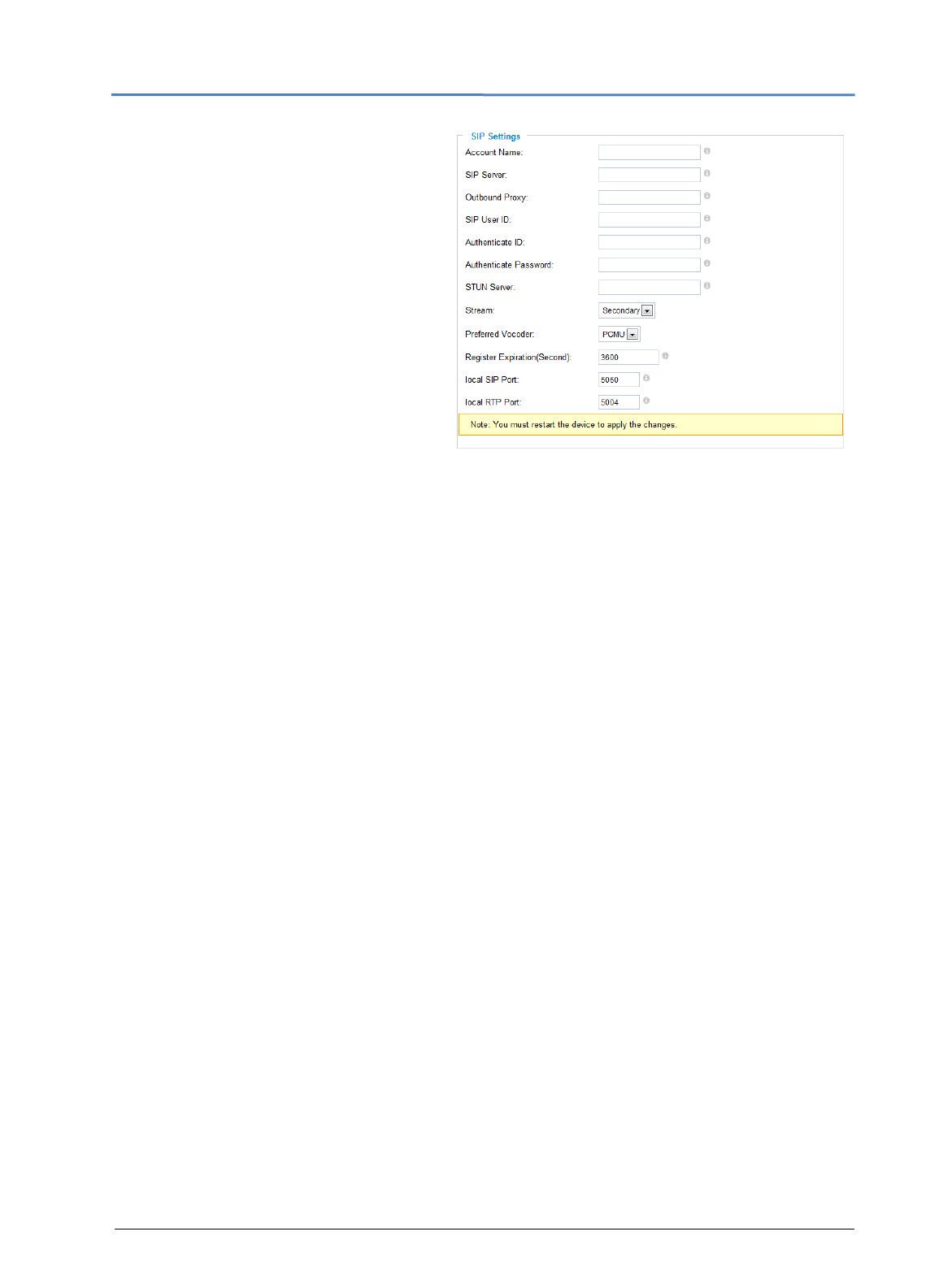

SIP User ID – User account
information provided by your service
provider (ITSP); this is either an
actual phone number or is formatted
like one.
Authenticate ID – The SIP service
subscriber‟s Authenticate ID used
for authentication. It can be identical
to or different from the SIP User ID.
Authenticate Password – The SIP
service subscriber‟s account
password for the GXV to register to
the SIP server of the ITSP.
STUN Server – If the device is behind a router, a STUN server is needed to help
penetrate the NAT.
Stream – To choose between Primary and Secondary stream.
Preferred Vocoder – To choose different Vocoder type.
Registration Expiration – This parameter allows users to specify the time frequency (in
minutes) in which the GXV refreshes its registration with the specified registrar. The
default interval is 60 minutes.
Local SIP Port – This parameter defines the local SIP port used to listen and transmit.
The default value is 5060.
Local RTP Port – This parameter defines the local RTP-RTCP port pair that is used to
listen and transmit. The default value is 5004.
5. Click Save to save all the changes. You need to restart the device to apply all changes.
Configure Phone List
To make sure the GXV3615 can make phone calls to the number you preferred when alarm is
triggered. You need to add number to the phone list.
Steps to add phone number:
1. From the GXV3615 home page, click Basic Settings > SIP.
2. Go to Phone List Tab.
3. Enter the Phone number and name, click Add a Number to save all the changes.
4. Numbers added to the system will be listed in this page.
