GXV3615 IP Camera Series
Firmware 1.0.4.8 Page 6 of 28
Grandstream Networks, Inc. 11 /29/10

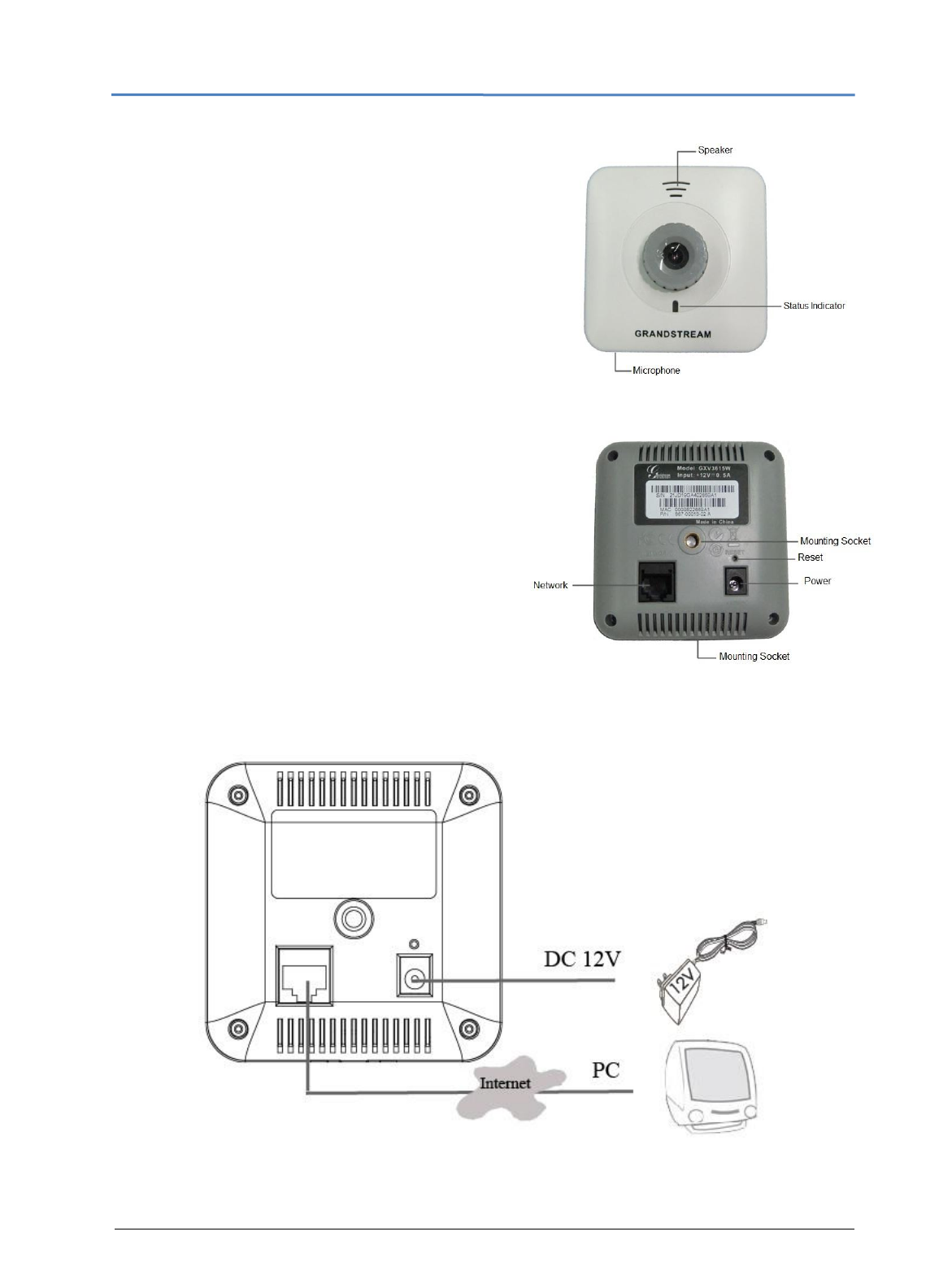

GXV3615 Series Front Panel
Speaker GXV3615 built-in speaker
Status Indicator Red when power up / Green when
ready.
Microphone GXV3615 built-in microphone
GXV3615 Series Back Panel
NETWORK 10/100 Switch LAN port for
connecting to Ethernet. The indicator will be
steady for connection and flashing for network
activity.
DC 12V 12V DC power jack; UL Certified.
RESET Press the Reset button for 6 seconds to
Mounting Socket This is used for mounting
GXV3615
GXV3615 Series Sample Connection Diagram
GXV3615 Series Key Features
