Replacing Toner
4-6 Ordering and Replacing Consumables

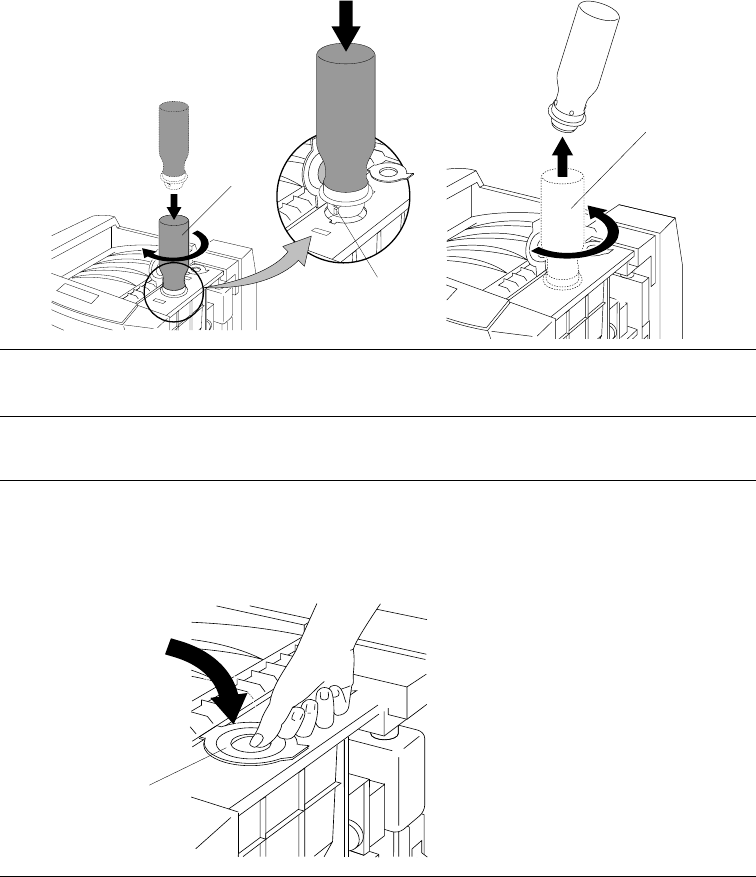

Figure 4-3 Filling the toner and removing the Toner Bottle
Note It will take about 30 seconds for the toner to empty into the toner hopper. Because the
toner bottle is translucent, you should be able to see the toner empty out of the bottle.
8. When empty, turn the toner bottle counterclockwise 180
°
and remove, as shown in
Figure 4-3.
9. Close the toner fill flap, as shown in Figure 4-4.
Figure 4-4 Closing the Toner Fill Flap
10. Discard the toner bottle. The toner bottle is made of recyclable materials. Dispose of it
according to local regulations.
Handle
Guide pin
Toner bottle
Empty toner bottle
Toner fill flap
