Adjusting Paper Path Alignment
Advanced Topics 6-17
Advanced Topics
4. Position the line labeled "Align with left edge of printed sheet" against the left edge of
the alignment sheet for tray 1. Figure 6-10 shows how the two sheets should look when
properly positioned.
5. The arrow printed on the alignment sheet for tray 1 will intersect the simplex feed
alignment ruler sheet scale at some value, as shown in the illustration.
Note Make sure that the tip of the arrow is on the exact edge of the paper. If it is not, your
measurement may be inaccurate.

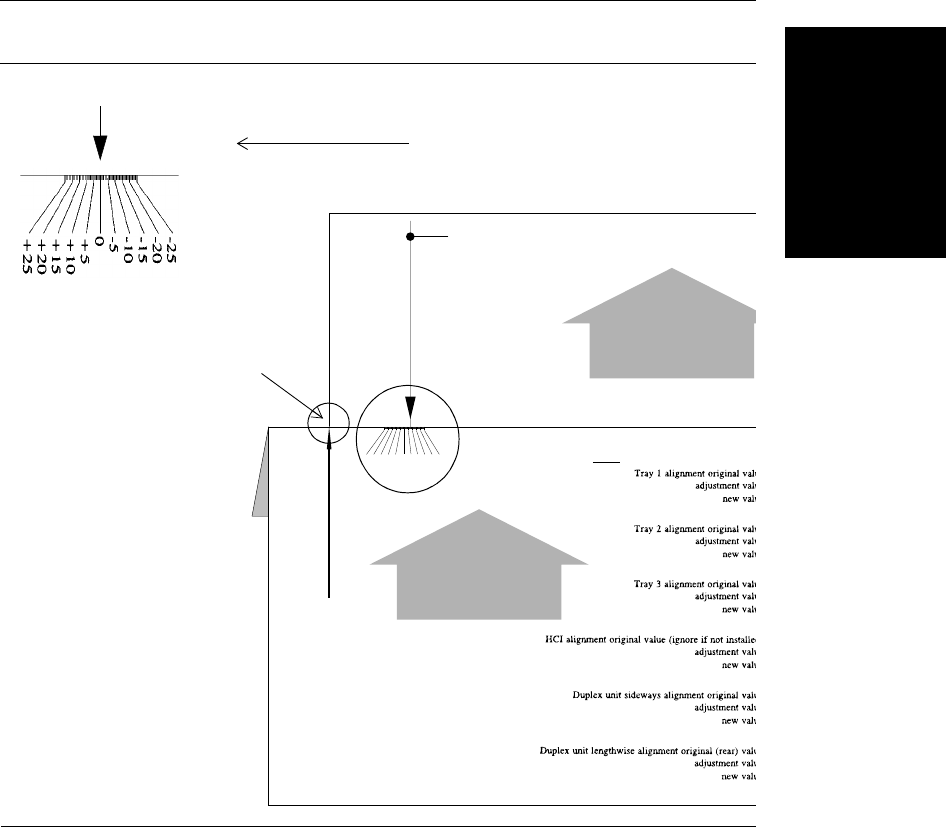

Figure 6-10 Measuring alignment with alignment scale
Feed alignment indicator line
Measure between these two arrows
0
+5
+10
+15
+20
+25
-5
-10
-15
-20
-25
Line on printed sheet indicates the required relative adjustment.
Align with left edge of printed sheet
Direction of paper motion
Feed 1: Upper tray
Direction of paper motion
Place edge here
Read measurement here
