Replacing Developer
Ordering and Replacing Consumables 4-13
Consumables
2. Remove the developer collector bottle, as shown in Figure 4-16.

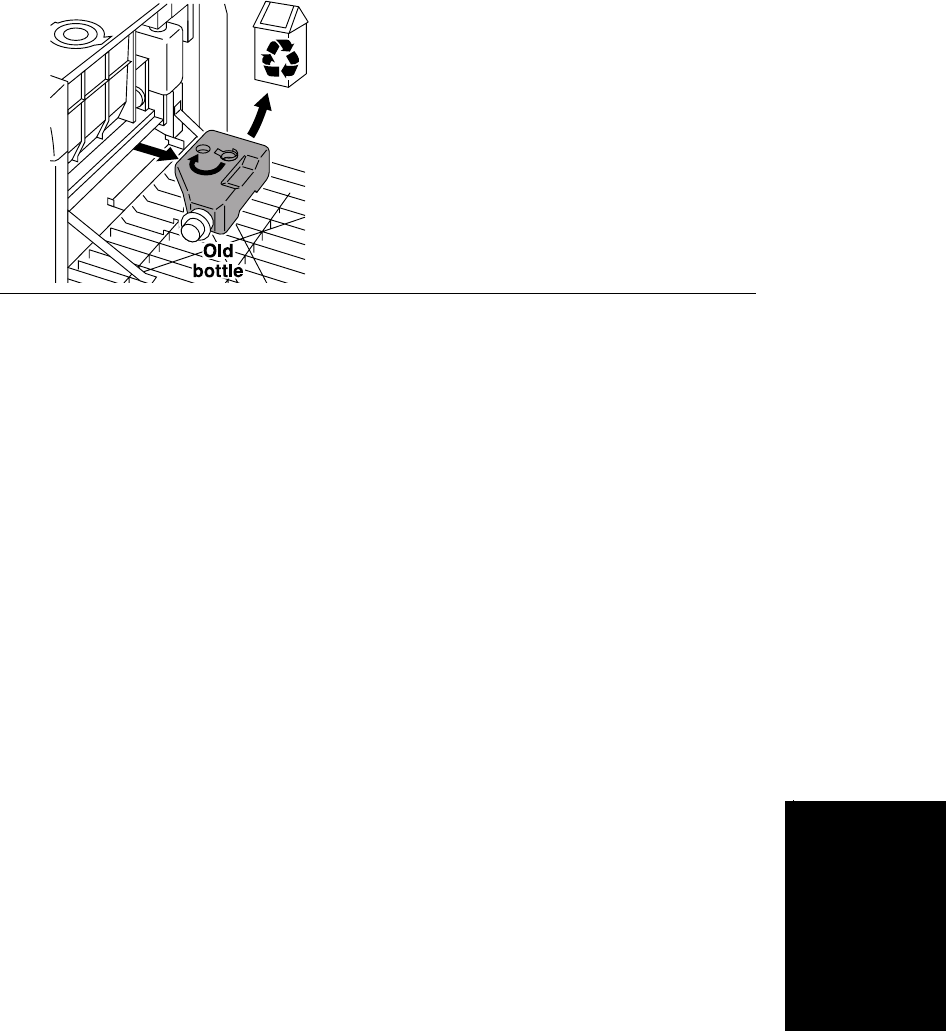

Figure 4-16 Removing Developer Collector Bottle
3. Move the bottle cap from the storage position onto the collection hole to close the bottle,
as shown in Figure 4-16.
4. Discard the developer collector bottle. The developer collector bottle is made of
recyclable materials; dispose of it in accordance with local regulations.
5. The following text appears on the Control Panel:
Developer injection
Open rear flap
Insert New Developer bottle
Press Done when bottle empty
6. Locate a new bottle of developer.
