Adjusting Paper Path Alignment
6-16 Advanced Topics
2. On the alignment sheet for tray 1, shown in Figure 6-9, locate the Feed 1 alignment
indicator line.
3. Place the simplex feed alignment ruler sheet adjustment scale between the ends of the
arrows (at "measure between these two arrows", shown in Figure 6-9).

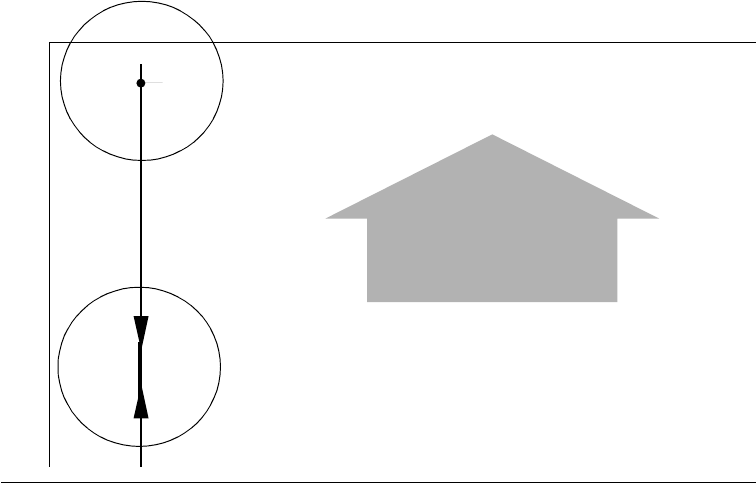

Figure 6-9 Sample Alignment Sheet for Tray1
Measure between these two arrows
Feed alignment indicator line
Direction of paper motion
Feed 1: Upper tray
