8e6 ThreaT analysis reporTer Quick sTarT Guide 11
Rack Mount Instructions for SL Servers
Rack Setup Suggestions
Determine the placement of each component in the rack before you install the rails.
Install the heaviest server components on the bottom of the rack rst, and then work
up.
Install the Inner Slides
1. Locate the right inner slide, (the slide that will be used on the right side of chassis
when facing the front panel of the chassis).

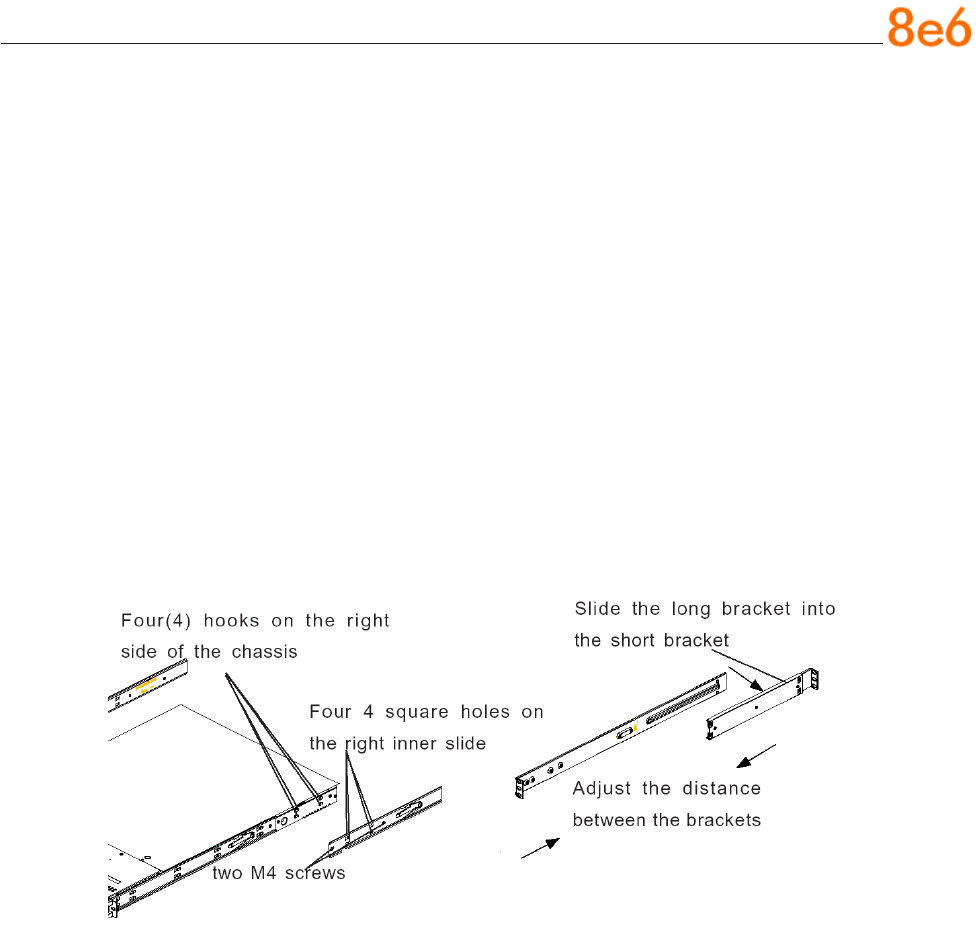

2. Align the four (4) square holes on the right inner slide against the hooks on the right
side of the chassis as show below on the left.
3. Securely attach the slide to the chassis with two M4 at head screws and repeat the
steps 1-3 to install the left inner slide to the left side of the chassis.
Install the Outer Slides
1. Measure the distance from the front rail of the rack to the rear rail of the rack.
2. Attach a short bracket to the rear side of the right outer slide, and a long bracket to
the front side of the right outer slide as shown above on the right.
3. Adjust the short and long brackets to the proper distance so that the chassis can
snugly t into the rack.
4. Secure the slides to the cabinet with screws.
5. Repeat steps 1-4 for the left outer slide.
•
•
