Appendix D Pin Assignments
119
29 P14 30 P15
31 P16 32 P17
33 GND 34 GND
35 SHFCLK 36 FLM
37 M/DE 38 LP
39 EVEN CLK 40 ENABKL

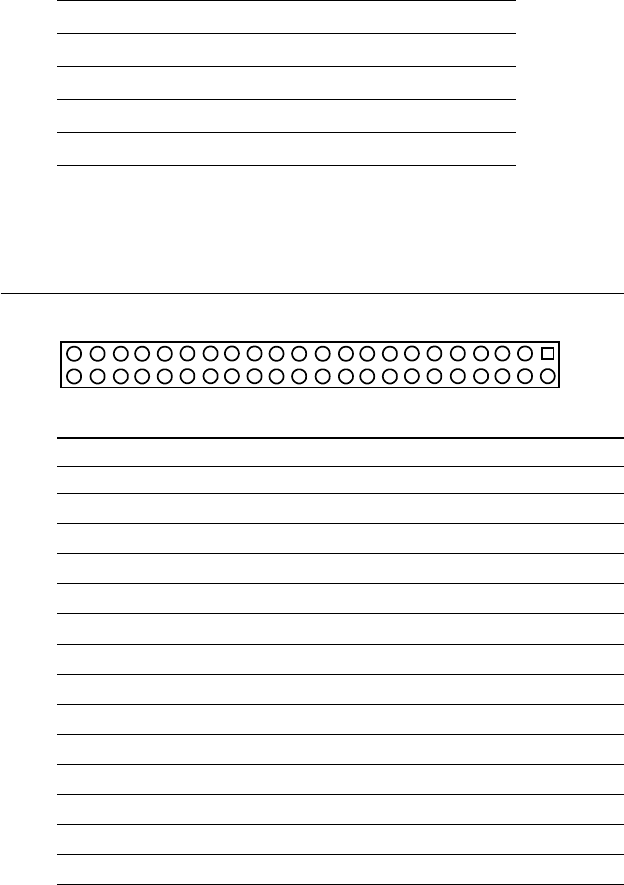

C.3 Primary IDE Connector (J3)
444
43 3
42
41 1
2
Table C-3: Primary IDE connector (J3)
Pin Signal Pin Signal
1 IDE RESET # 2 GND
3DATA 7 4 DATA8
5DATA 6 6 DATA9
7DATA 5 8 DATA10
9 DATA 4 10 DATA 11
11 DATA 3 12 DATA 12
13 DATA 2 14 DATA 13
15 DATA 1 16 DATA 14
17 DATA 0 18 DATA 15
19 SIGNAL GND 20 CABLE SELECT
21 HDD DREQ 22 GND
23 IO WRITE 24 GND
25 IO READ 26 GND
