Chapter 3 AirPort Network Designs 25

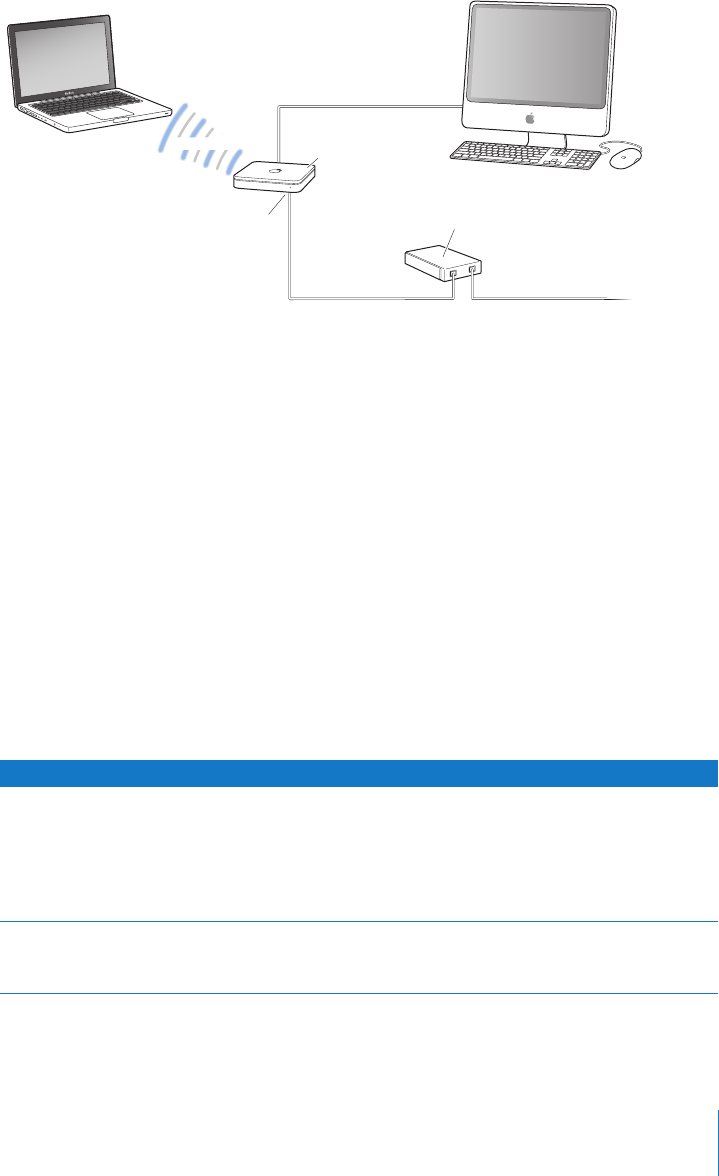

What It Looks Like
How It Works
 The Apple wireless device (in this example, a Time Capsule) connects to the Internet
through its Internet WAN (<) connection to your DSL or cable modem.
 Computers using AirPort or computers connected to the wireless device’s Ethernet
LAN port (G) connect to the Internet through the device.
 The device is set up to use a single, public IP address to connect to the Internet, and
uses DHCP and NAT to share the Internet connection with computers on the network
using private IP addresses.
 AirPort computers and Ethernet computers communicate with one another through
the wireless device.
Important: Connect Ethernet computers that are not connected to the Internet to
the device’s LAN port (G) only. Since the device can provide network services, you
must set it up carefully to avoid interfering with other services on your Ethernet
network.
What You Need for a DSL or Cable Modem Connection
DSL or cable modem
to Internet
to Ethernet port
Time Capsule
Ethernet WAN port
<
2.4 or 5 GHz
Components Check Comments
Internet account with DSL or
cable modem service provider
Does your service provider use a
static IP or DHCP configuration?
You can get this information
from your service provider or the
Network preferences pane on
the computer you use to access
the Internet through this service
provider.
Apple wireless device (an AirPort
Extreme Base Station, an AirPort
Express, or a Time Capsule)
Place the device near your DSL
or cable modem.
