Part Names and Functions

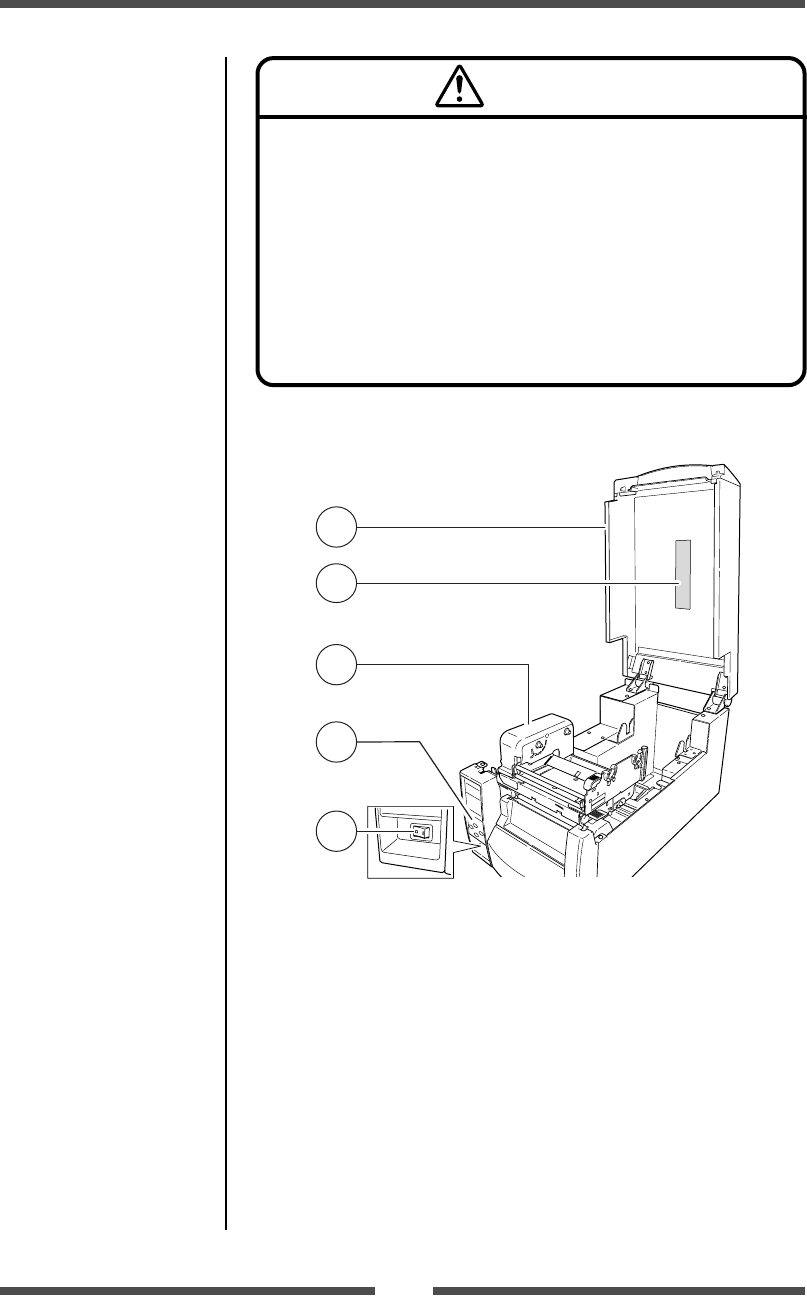

Inside the printer
1
3
4
5
2
Operation Panel (p.16)
1 Top cover
Is opened vertically to set media or ribbon.
2 Operation panel
This is used to make changes and adjustments to the printer and its
configuration.
3 Top cover window
The amount of ribbon and media remaining can be checked through this
window.
4 Ribbon drive unit
5 Power switch
This is the power switch for the printer.
• Be careful when moving or carrying the printer and when taking the
printer out of the carton. The printer may cause injury or property
damage if dropped. Be sure to grip the printer housing firmly when
taking it out of the carton. Do not grip the printer by the foam packing
material which may break, causing the printer to drop.
• When opening the cover, open it all the way. If only part way open,
the cover could slam shut, possibly causing injury.
• Be careful of the edge of the cover when the cover is opened. It may
cause injury or property damage.
• Be careful of the edges of the metal plates as injury or property
damage is possible.
Caution
Setting the Ribbon (p.32)
Power ON/OFF (p.20)
