Disassembly
2 - 32 Removing the PC Video Camera Module
2.Disassembly
Removing the PC Video Camera Module
1. Turn off the computer, remove the battery (page 2 - 8), hard disk (page 2 - 9), RAM (page 2 - 10), CD Device (page
2 - 12), Bluetooth module (page 2 - 14), Wireless LAN module (page 2 - 15), CPU (page 2 - 16), keyboard (page 2 -
18), keyboard shielding plate (page 2 - 19), the top case and LCD (page 2 - 20) and LCD front panel (page 2 - 30).
2. Disconnect cable (Figure 25a).
3. Lift the PC camera module (Figure 25b) off the LCD assembly.
4. If you need to remove the antenna cable, first remove the LCD module (
page 2 - 33), then remove screw and
the antenna cable (Figure 25c).
!
2. PC Camera
4. Antenna Cable
•1 Screw

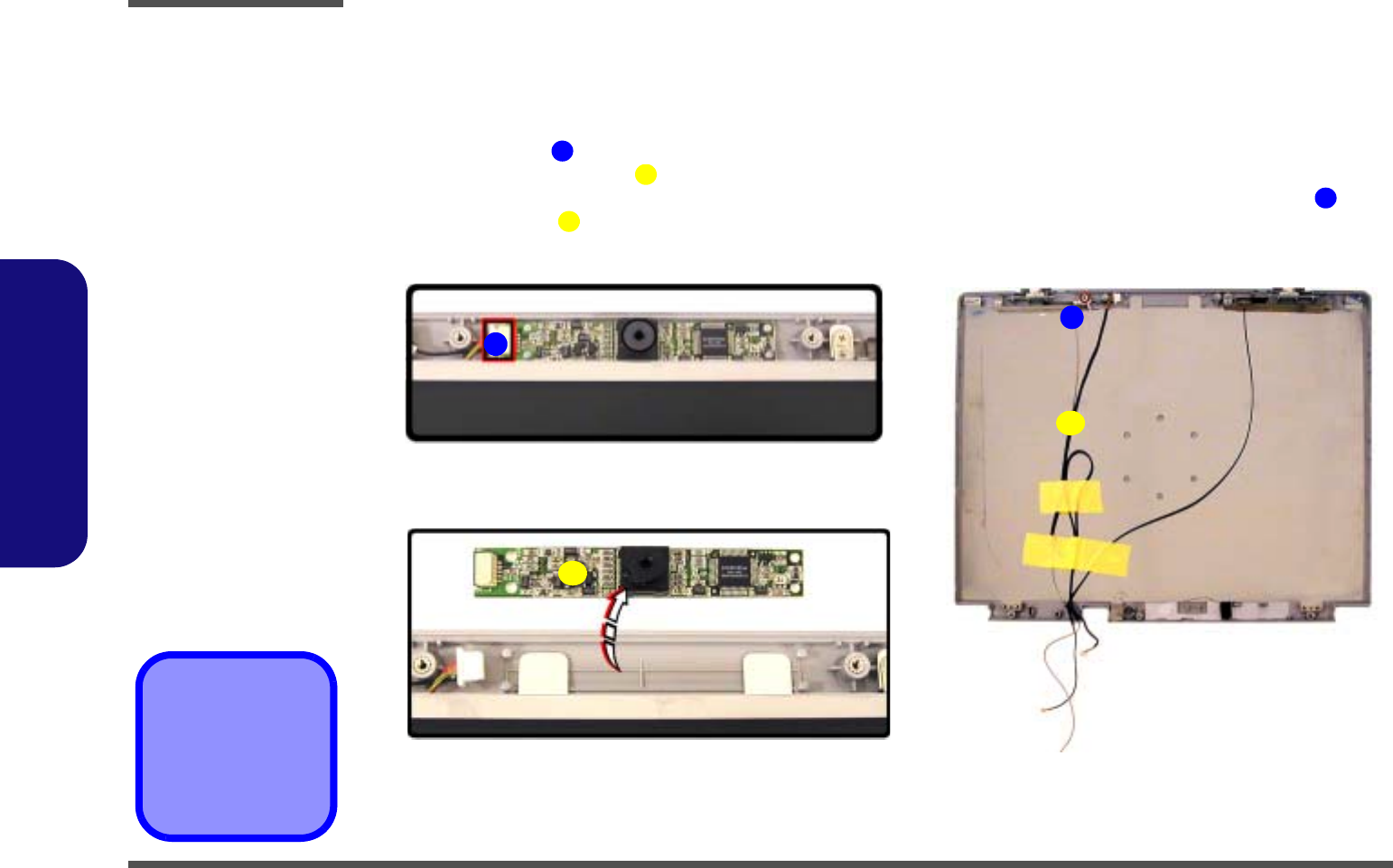

Figure 25
PC Camera Module
Removal
a. Disconnect the cable.
b. Lift the PC Camera off
the LCD assembly.
c. If you need to remove
the antenna first remove
the LCD module then the
screw, and the antenna
cable.
1
2
3
4
1
a.
b.
2
c.
3
4
