Projector Installation
This appendix provides guidelines on installing the projector in a
permanent location, such as a theater or conference room.

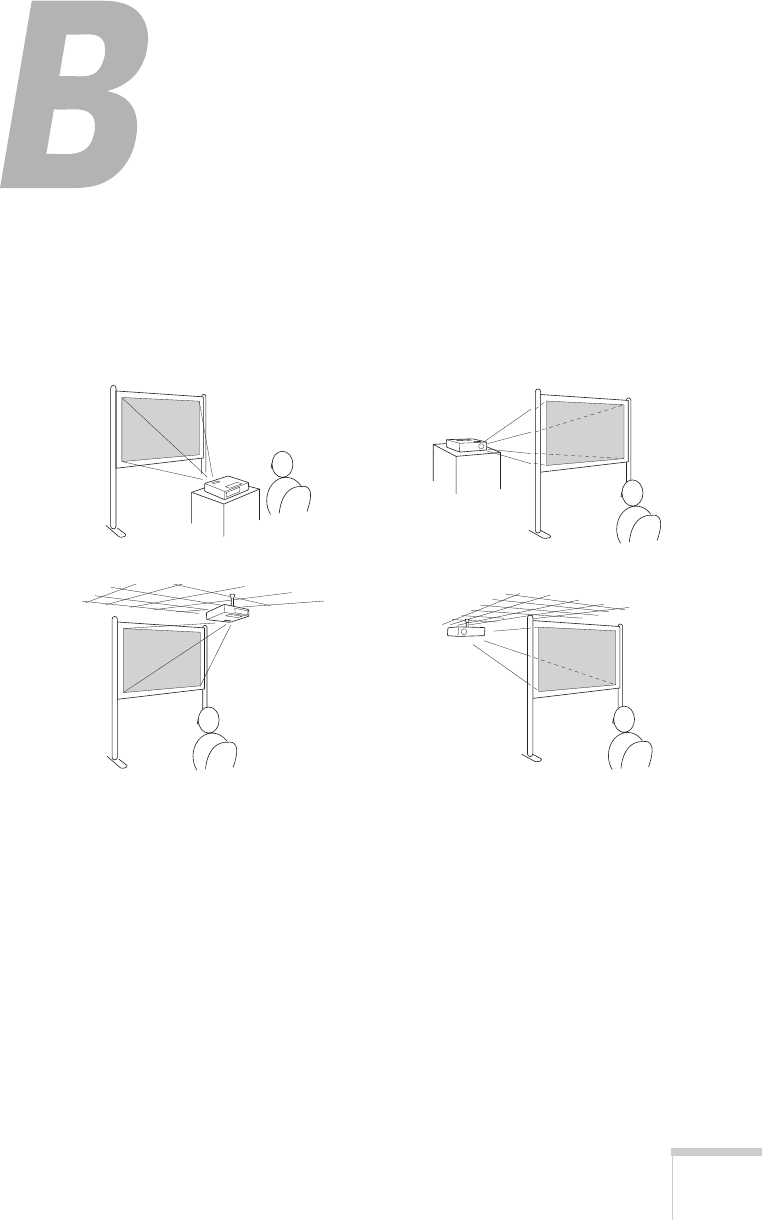

The projector can be installed for four different viewing setups: front
projection, ceiling projection, rear projection onto a semi-transparent
screen, or rear/ceiling projection, as shown:
To project from overhead, you’ll need the optional ceiling mounting
hardware (see page 13). You’ll also need to select the appropriate
Projection setting in the projector’s Extended menu to flip the image
upside-down (see page 132).
If you’re mounting the projector on the ceiling and you place it above
screen level, you’ll have to tilt the projector down to position the
image on the screen. This causes the image to lose its square shape.
You can correct the image using the projector’s
Quick Setup, Quick
Corner
, and/or Keystone functions, as described on page 24.
Front projection Rear projection
Rear/ceiling projectionCeiling projection
