GE MDS Intrepid-HC HP Installation Guide 1-11
RFU Cable Connections

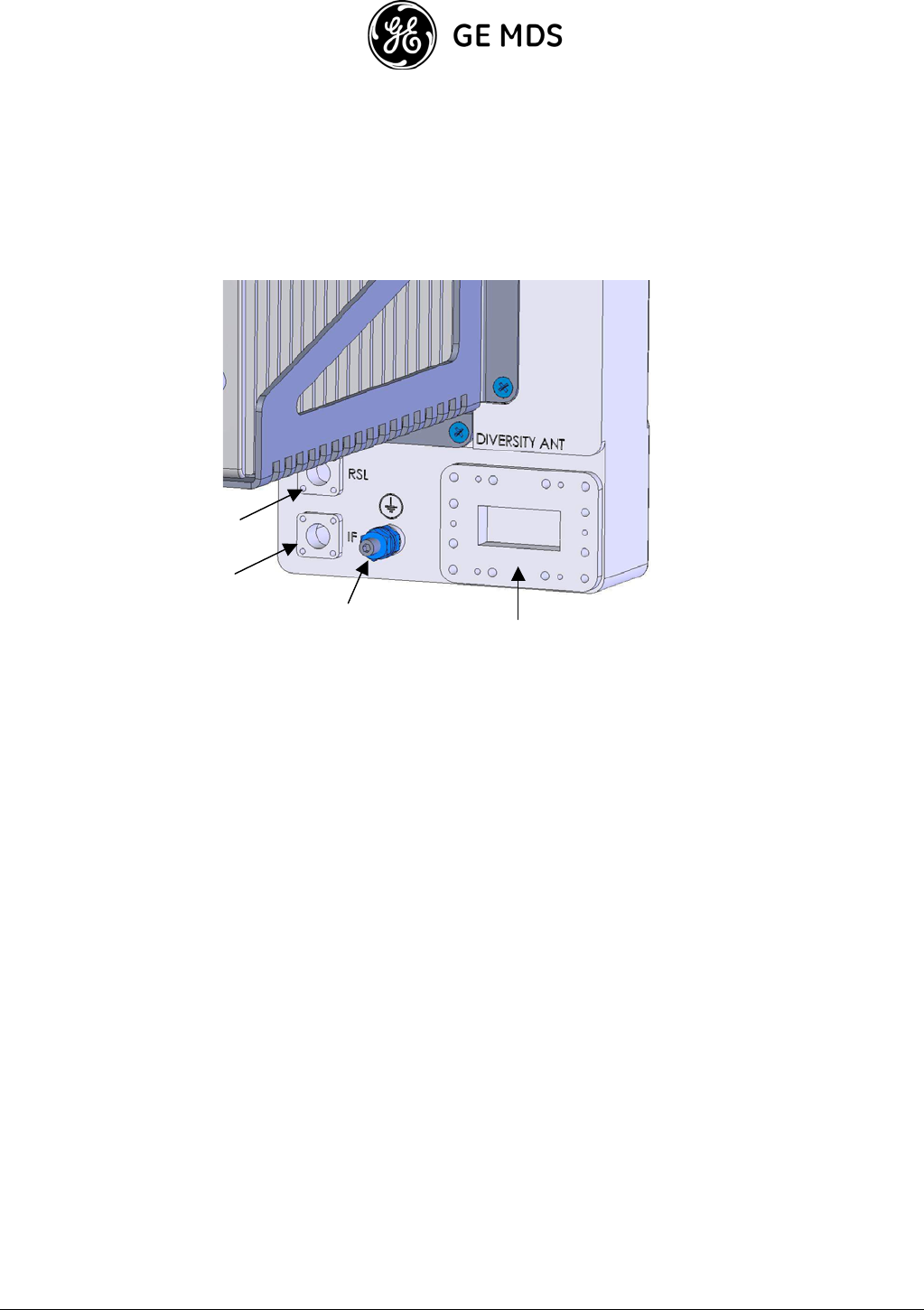

The RFU cable connectors are located on the bottom of the RFU, as shown in the following photo:
The connections include the following:
XPIC/RSL For XPIC functionality and radio signal monitoring.
IF Connects the RFU to the IDU.
Ground Used for electrical ground.
Flexible Waveguide Connects the RFU to the antenna.
IF
XPIC/RSL
Waveguide
Ground
