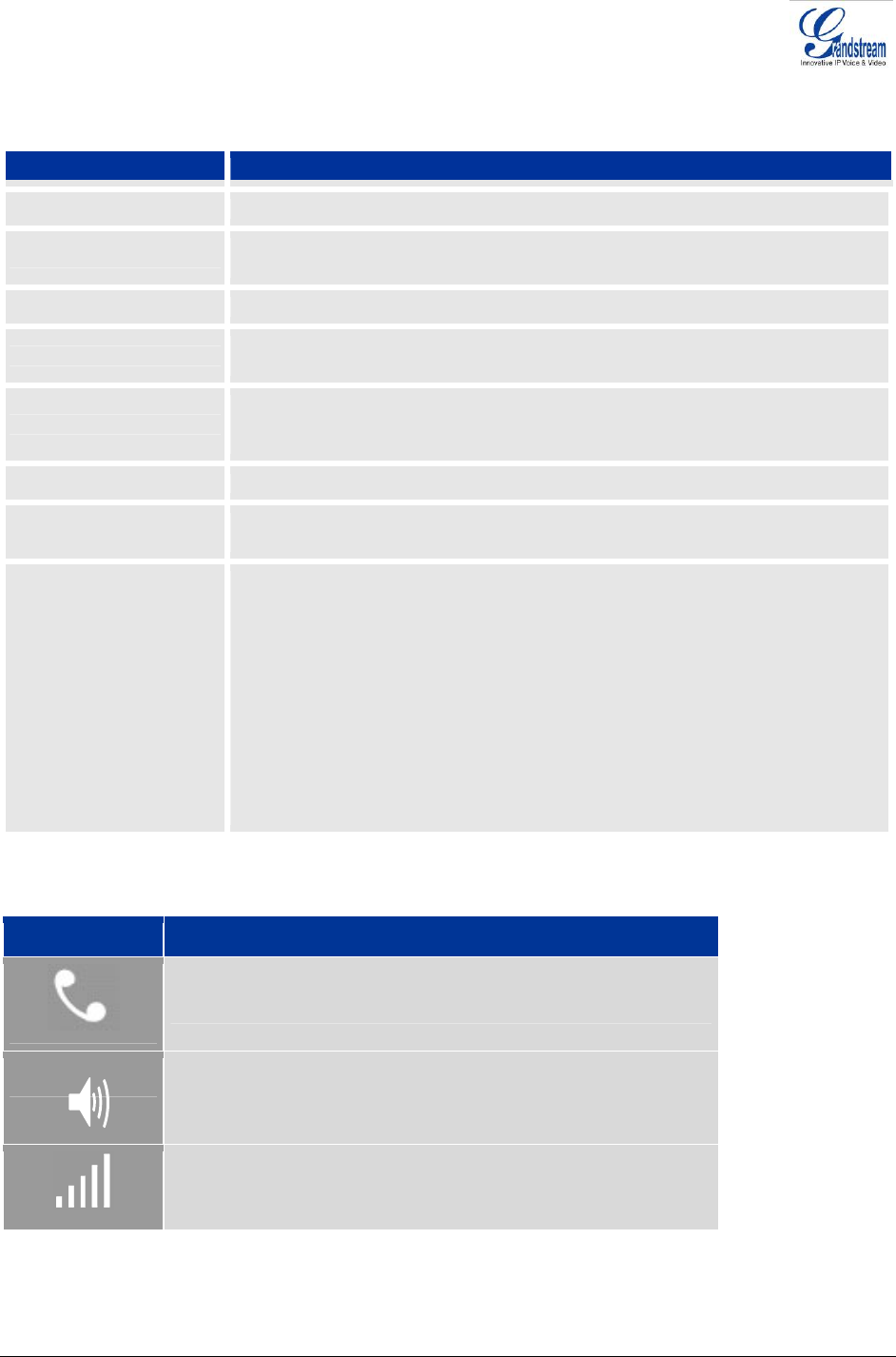

Table 5: LCD Button Definitions
Key Button Key Button Definitions
LINE SELECTORS (6)
Selects the phone line printed on its right-hand side.
SIP PHONE LINES
Displays the available phone lines. Choose a phone line by pressing the
corresponding line selector on the left-hand side.
DATE AND TIME
Displays the current date and time. Can be synchronized with Internet time servers.
LOGO
Displays company logo. This logo can be customized. For more information on
customizing the logo, please see the web-configuration menu (page 31).
NETWORK STATUS
Shows the status of the phone and network. It will indicate whether the network is
down, starting or is running (show IP-number). Other messages such as “DO NOT
DISTURB” or “## MISSED CALLS” are shown here too.
STATUS BAR
Shows the status of the phone, using icons as shown in the next table.
LINE STATUS
INDICATOR
Displays the name of the account that is in use. Select another account by pressing
the LINE SELECTOR BUTTONS
SOFT-BUTTONS
The soft-buttons are context sensitive and will change depending on the status of
the phone. Typical functions assigned to soft-buttons are:
• NEW CALL Press this button to make a new hand-free call.
• FORWARD ALL Unconditionally forwards the main phone line to another
phone
• MISSED CALLS This option shows up there were unanswered calls to this
phone. The MissedCalls option shows a list of the missed
calls
• CALL RETURN Calls the phone that called/tried to call your phone last.
• REDIAL Redials the last number
• END CALL Hangs up phone
Table 6: LCD Icon Definitions
Icon LCD Icon Definitions
Phone Status Icon:
OFF when the handset is on-hook
ON when the handset is off-hook
Speaker Phone Status Icon:
FLASH when phone rings or a call is pending
OFF when the speakerphone is off
ON when the speakerphone is on
Handset, Speakerphone and Ring Volume Icon:
Each icon appears next to the volume icon
To adjust volume, use the up/down button
Grandstream Networks, Inc. GXP–2020 User Manual Page 11 of 32
Firmware 1.1.4.3 Last Updated: 06/2007
