14

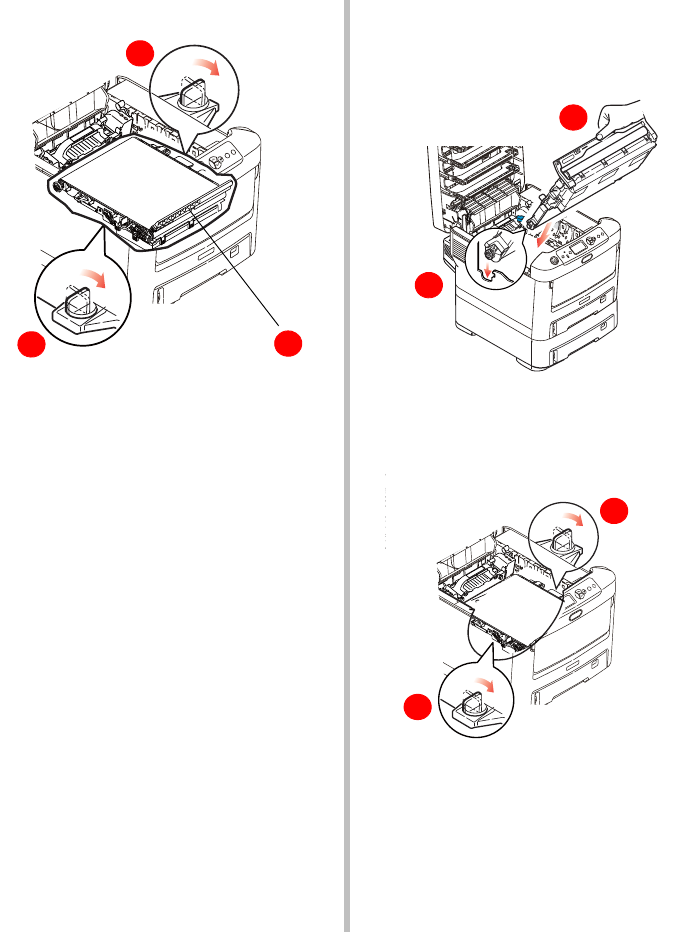

6. Remove the belt unit:
a. Turn the two fasteners 90°
to the left.
b. Lift the handle of the belt
unit and remove it from the
printer.
7. Remove the new belt unit from
its packaging.
8. Install the new belt unit:
a. Lower the belt unit into the
printer. Make sure that the
handle is at the front of the
printer, and the drive gear is
at the rear of the printer.
b. Align the drive gear on the
belt with the gear in the
printer.
c. Press the belt into place.
d. Turn the two fasteners 90°
to the right.
9. Install each toner
cartridge/image drum. See
Step 9 on page 20.
10. Close the top cover.
a
a
b
a
b
d
d
