38 Installation options
NN47928-302NN47928-302
4 Open the cable management door.
5 Use two of the supplied screws to attach the wall-mount bracket to the wall
through the cable trough.
6 Use three of the supplied screws to attach the upper portion of the wall-mount
bracket to the wall as shown in the following figure. Leave approximately 0.5 cm
(0.25 in.) of the screw exposed.
7 Align the holes of the wall-mount bracket over the screws.
8 Slide the bracket down onto the screws.
9 Tighten the wood screws against the wall-mount bracket.
10 Insert the power supply retention clip into the BSG8ew.
2
2
2
1
1
1

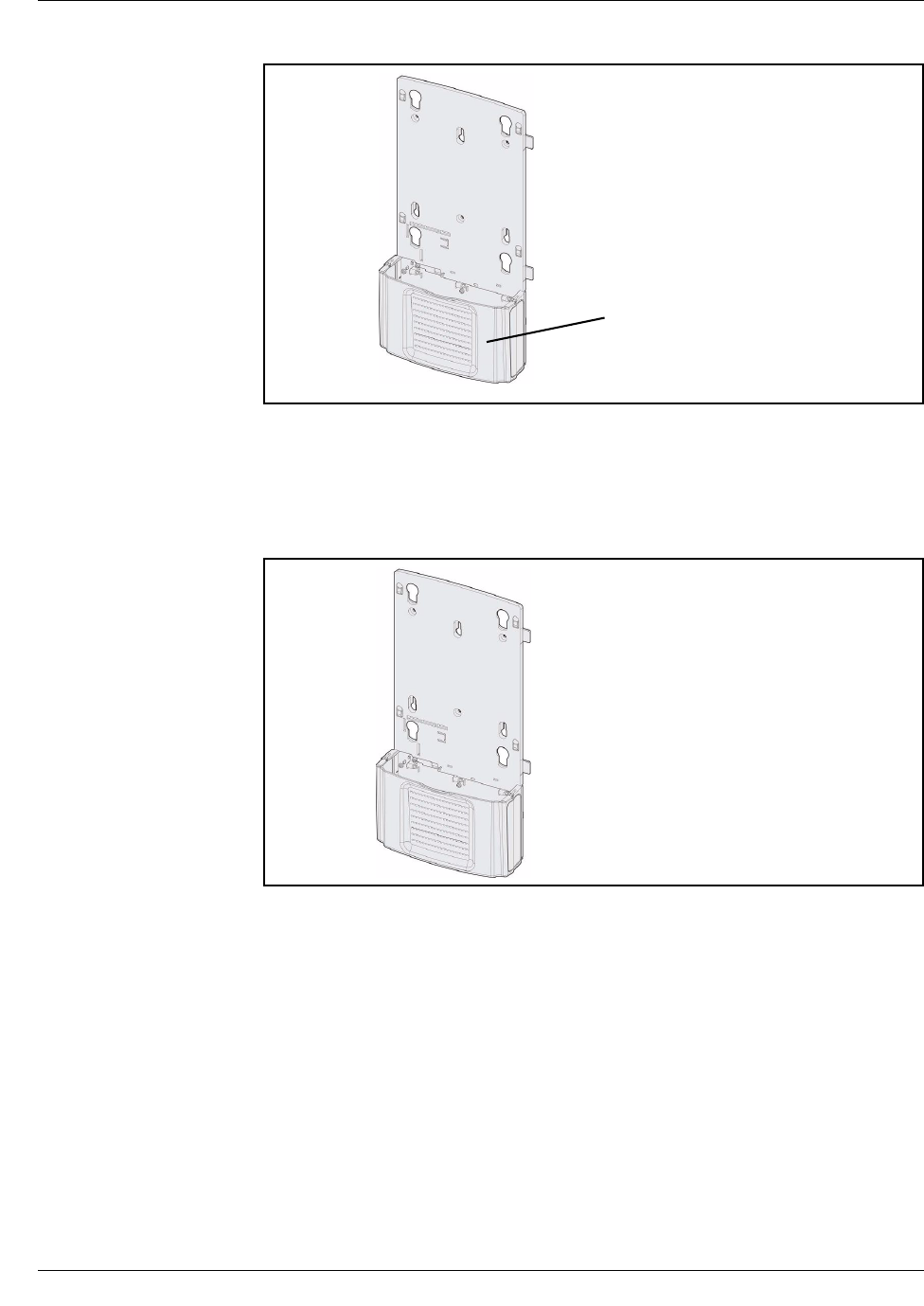

Cable Management Door
Note: Nortel recommends you install the screws
in the three holes labeled 1 or the three holes
labeled 2.
2
2
2
1
1
1
