Panasonic CF-73 Laptop User Manual



12
Getting Started

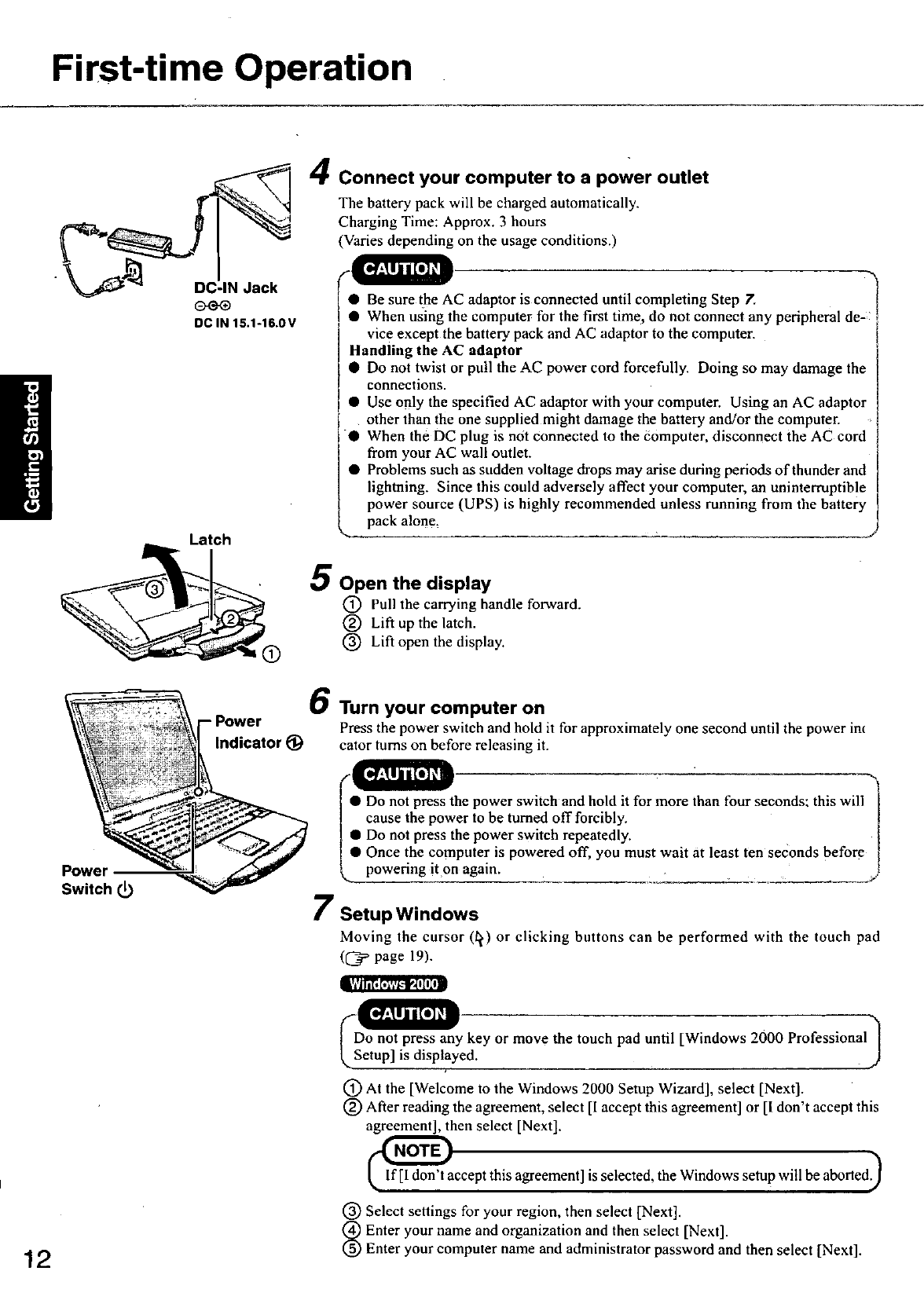

First-time Operation
Connect your computer to a power outlet.
CAUTION
Be sure the AC adaptor is connected until completing the first-time use operation.
When using the computer for the first time, do not connect any peripheral de-
vice except the battery pack and AC adaptor to the computer.
Handling the AC adaptor
Do not twist or pull the AC power cord forcefully. Doing so may damage the
connections.
Use only the specified AC adaptor with your computer. Using an AC adaptor
other than the one supplied might damage the battery and/or the computer.
When the DC plug is not connected to the computer, disconnect the AC cord
from your AC wall outlet.
Problems such as sudden voltage drops may arise during periods of thunder and
lightning. Since this could adversely affect your computer, an uninterruptible
power source (UPS) is highly recommended unless running from the battery
pack alone.
4
5
Open the display.
1 Pull the carrying handle forward.
2 Lift up the latch.
3 Lift open the display.
CAUTION
6
Turn your computer on.
Press the power switch and hold it for approximately one second until the power indi-
cator turns on before releasing it.
Do not press the power switch and hold it for more than four seconds; this will
cause the power to be turned off forcibly.
Do not press the power switch repeatedly.
Once the computer is powered off, you must wait at least ten seconds before
powering it on again.
7
Setup Windows.
Moving the cursor ( ) or clicking buttons can be performed with the touch pad
( page 18).
The battery pack will be charged automatically.
Charging Time: Approx. 3 hours
(Varies depending on the usage conditions.)
3
2
1
Latch
Power
Switch
Power
Indicator
DC-IN Jack
DC IN 15.6 V
CAUTION
1 At [Welcome to the Windows XP Setup Wizard], select [Next].
2 After reading the agreement, select [I accept this agreement] or [I don’t accept this
agreement], then select [Next].
NOTE
DC Plug
Do not press any key or move the touch pad until [Windows XP Professional
Setup] is displayed.
<Only for models with touchscreen>
Do not use the touchscreen during the Windows setup.
If [I don’t accept this agreement] is selected, the Windows setup will be aborted.
