1 - SAGEM F@st™ 1000 modem overview
User Guide - N56815740110
Page 1-10
No reproduction or communication without the written consent of SAGEM SA
Connectors

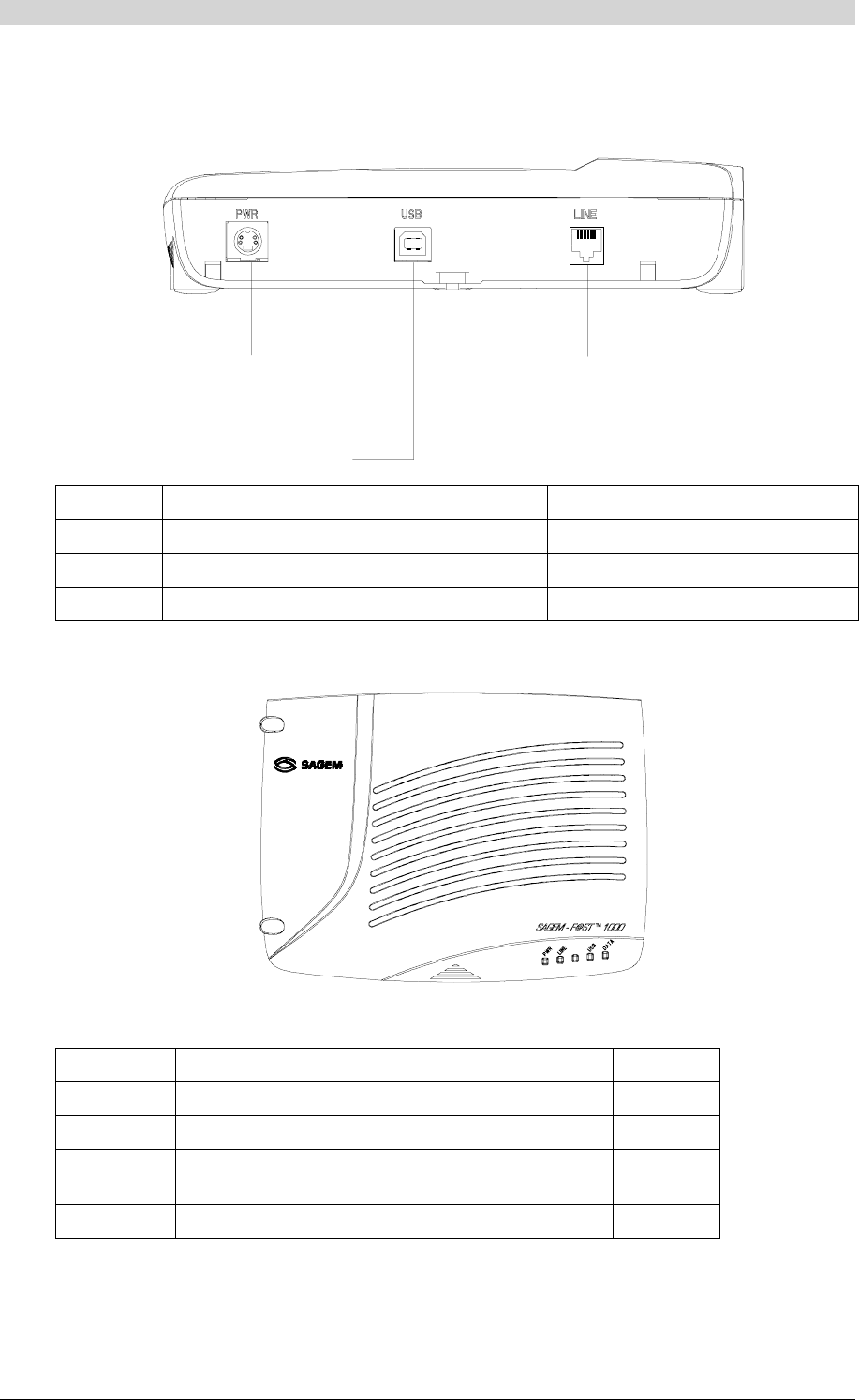

Looking from the rear, and reading from left to right, the connectors are:
123456
4-way Mini-DIN
socket
USB Connector
6-way RJ11
WAN Connector
Marking Interface Connector
PWR
Power supply interface 4-way MINI-DIN socket
USB
USB interface Type B female connector
LINE
Remote network interface (ADSL) 6-way RJ11 connector
Supervision LEDs
The supervision LEDs, from left to right on the cover, are as follows:
Marking Meaning Color
PWR
Presence of power supply Green
LINE
Accessibility to a wide area network (ADSL) Green
USB
Accessibility to a computer connected by USB
interface
Green
DATA
Port activity Green
Note: How to interpret these four LEDs is described in section 2.3 (Operation) and
section 4 (Troubleshooting the SAGEM F@st
TM
1000 modem).
