2 - Connecting the SAGEM F@st™ 1000
User Guide - N56815740110
No reproduction or communication without the written consent of SAGEM SA
Page 2-3
2.2 SAGEM F@st™ 1100 port connections
Three connections are required to use the SAGEM F@st™ 1100 :
! Connection to the mains supply.
! Connection to a computer by USB interface.
! Connection to the wide area network (ADSL compatible telephone line).

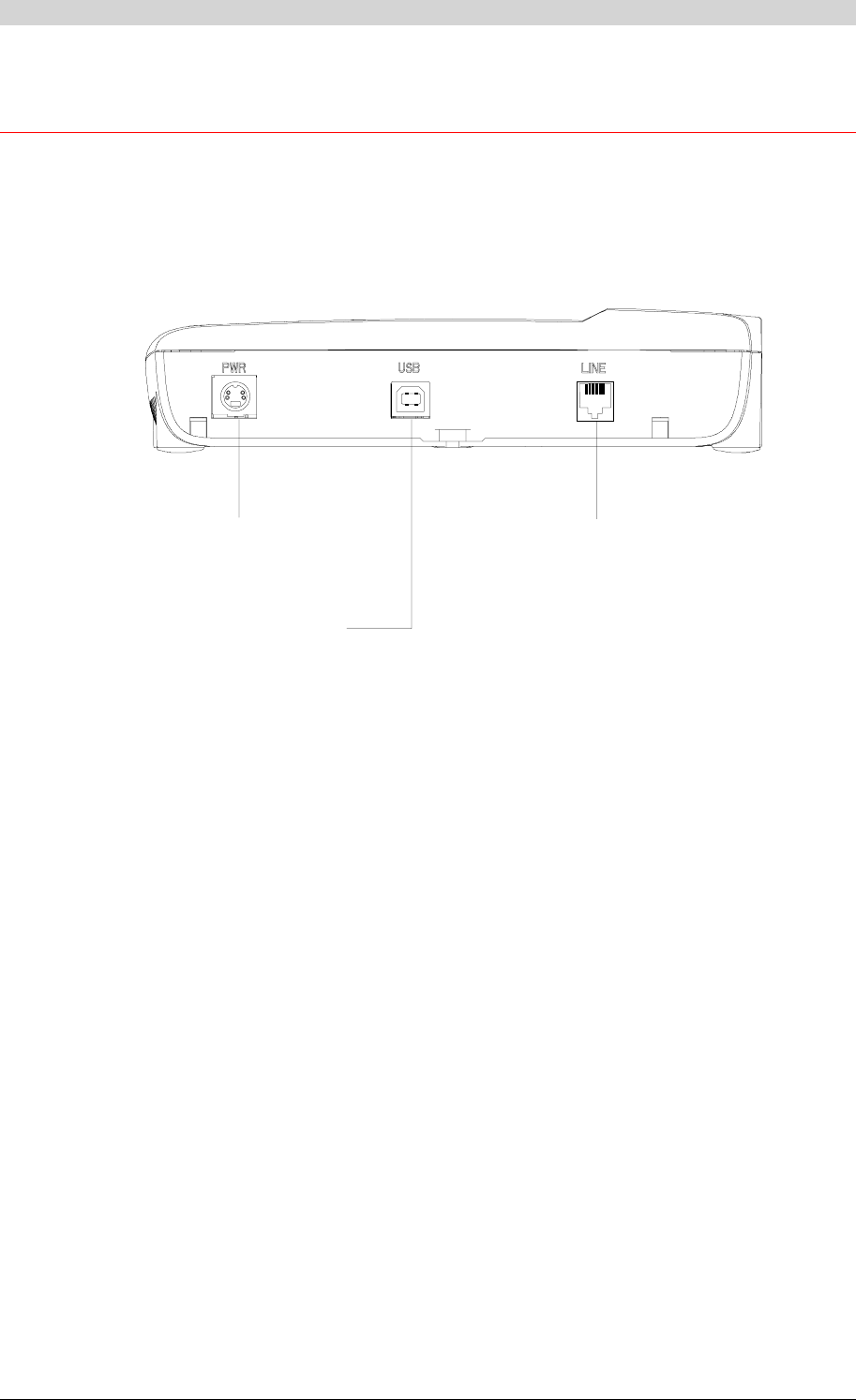

123456
4-way Mini-DIN
socket
USB Connector
6-way RJ11
WAN Connector
SAGEM F@st™ 1000 rear panel
2.2.1 Connection to the mains supply
! Plug the adapter's 4-way MINI-DIN connector into the corresponding socket (marked PWR)
on the rear panel of the SAGEM F@st™ 1000.
! Connect the mains adapter to the electrical power outlet.
! Check that the PWR LED on the front panel of the cover is lit.
