Installing and Connecting the Projection TV
Disconnect all power sources before making any connections.
1
Connect the cable from the satellite antenna to
the DBS receiver.
2
Attach the coaxial cable from the incoming
cable connection or antenna to VHF/UHF on
the projection TV.
3
Using AUDIO and S VIDEO cables, connect
AUDIO and S VIDEO OUT on the DBS
receiver to AUDIO and S VIDEO IN on the
projection TV (White-AUDIO Left, Red-
AUDIO Right).
Note:
• To view input from the DBS, select the video input
which the DBS receiver is connected to by pressing
TV/VIDEO on the remote control.

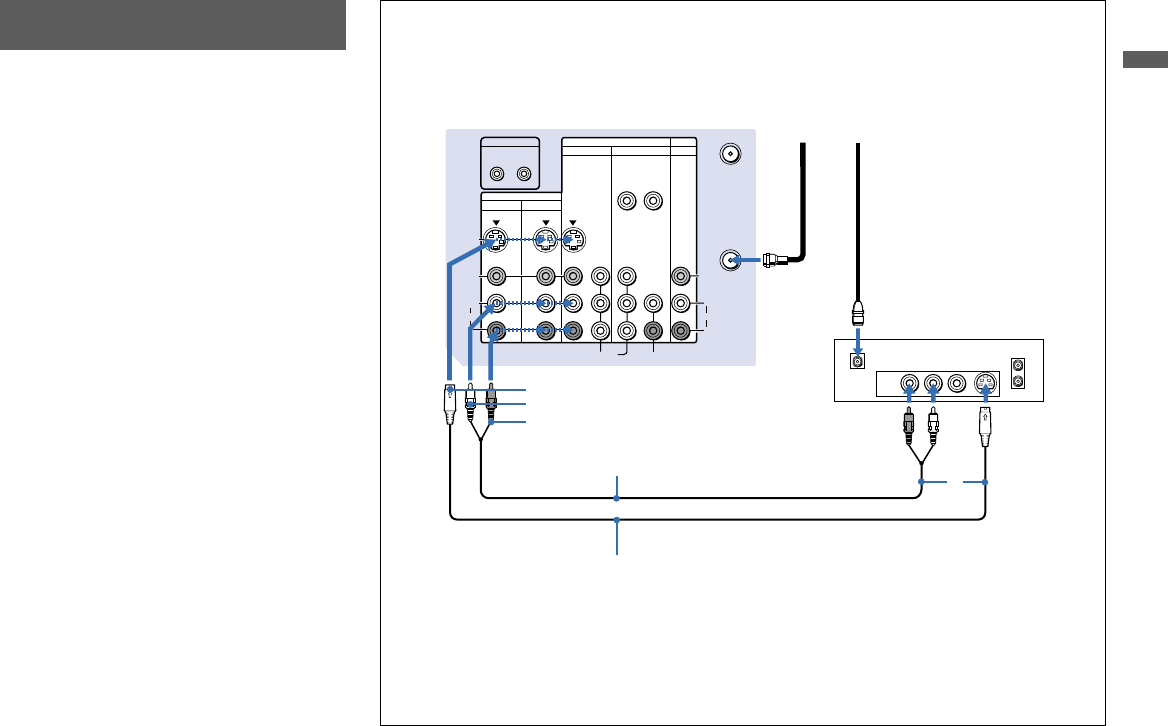

Connecting a DBS (Direct
Broadcast Satellite) Receiver
S VIDEO
VIDEO
AUDIO
L
R
R
VIDEO
(MONO)
IN
IN
CONTROL S
IN OUT
OUT
VIDEO 4
VIDEO 1 VIDEO 3
VIDEO 5 (DTV)
SELECT
Y
P
B
PR
Y/G
HD VD
P
B/B
P
R/R
L
(MONO)
R
L
AUDIO
AUDIOCOMPONENT
VHF/UHF
AUX
VHF/UHF
S VIDEO
OUT
IN
LINE OUT
SATELLITE IN
AUDIO R AUDIO L VIDEO
(Rear of projection TV)
RK-74A (not supplied)
YC-15V/30V (not supplied)
S-VIDEO
AUDIO-L
AUDIO-R
1
3
2
DBS
Cable/
Antenna
Satellite antenna
cable
